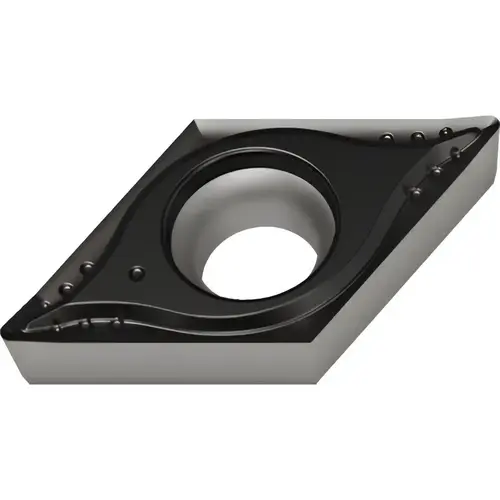

Turning Insert: DCGT11T304-MM4 WSM20S - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

B Walter 6844622-XCP10 Turning Insert: DCGT11T304-MM4 WSM20S - pack of 10

Item #: 6844622-XCP10 by B. Walter & Co.

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$360.23

/package
SAVE UP TO 36.02
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 21 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Iso Code

DCGT11T304-MM4 WSM20S

Proprietary Coating Designation

WSM20S

Corner Radius (mm)

0.40

Inscribed Circle (mm)

9.53

Length Range (Decimal Inch)

0.4000 - 0.5000

Manufacturer Grade

WSM20S

Maximum Depth of Cut (mm)

11.63

Hole Diameter (Mm) ( - 0 Decimals)

4.40

Multi-Use Application

Turning

Inscribed Circle (Inch)

3/8

Relief Angle

7

Hole Diameter (Decimal Inch)

0.1730

Tolerance Code

G

Insert Size Code

32.51

Insert Style

DCGT

Secondary Workpiece Material Code

P

Chip Breaker

MM4

Insert Shape Code

D

Full Radius

No

Rake Angle

7

Clearance Code

C

Insert Shape

Diamond 55

Corner Radius (Inch)

1/64

Insert Length (mm)

11.63

Inscribed Circle (Decimal Inch)

0.3750

Wiper Edge

No

Insert Hand

Neutral

Secondary Workpiece Material

Steel

Rake

Positive

Multi-use Tool

Yes

Maximum Depth of Cut (Decimal Inch)

0.4580

Lead Angle

55degree

Insert Thickness (Inch)

5/32

Insert Thickness (Decimal Inch)

0.1563

Insert Length (Decimal Inch)

0.4580

Insert Holding Method

Screw

Coating Classification

PVD

Width (mm - 2 Decimals)

11.63

Width (Inch)

3/8in

Width (Decimal Inch - 4 Decimals)

0.3750in

Vendor Drop Ship

N

UNSPSC Code

23242105

Primary Workpiece Material Code

M

Primary Workpiece Material

Stainless Steel

Material Grade

M20

Manufacturers Catalog Number

6844622

Corner Radius (Decimal Inch)

0.0157

Coating/Finish

TiCN

Coating Process

PVD

Series

DCGT-MM4

Insert Material

Carbide

Included Angle

55degree

Insert Thickness

3.97

Standards

ANSI

Number of Cutting Edges

2

Cutting Edge Style

Honed

Product Overview
Turning Insert: DCGT11T304-MM4 WSM20S TiAlN, Al2O3 & Al Coated, Neutral, 11.63 mm Long, 9.53 mm Inscribed Circle, 0.4 mm Corner Radius, 55 degree Diamond, Series DCGT-MM4
