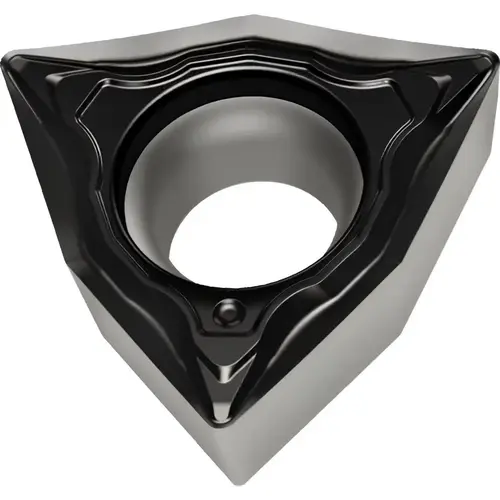

Turning Insert: WCMT06T304-FM4 WSM20S, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

B Walter 6917291-XCP10 Turning Insert: WCMT06T304-FM4 WSM20S, Solid Carbide - pack of 10

Item #: 6917291-XCP10 by B. Walter & Co.

Brand: B Walter

See reviewsSee reviews
See reviews summary
In Stock

$295.43

/package
SAVE UP TO 29.54
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 12 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Cutting Edge Style

Honed

Number of Cutting Edges

3

Standards

ANSI

Insert Thickness

3.97

Included Angle

80degree

Insert Material

Carbide

Series

WCMT-FM4

Coating Process

PVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0157

Manufacturers Catalog Number

6917291

Material Grade

M20

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5140in

Coating Classification

PVD

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.5140

Insert Thickness (Decimal Inch)

0.1563

Insert Thickness (Inch)

5/32

Lead Angle

80degree

Maximum Depth of Cut (Decimal Inch)

0.0590

Multi-use Tool

Yes

Rake

Positive

Secondary Workpiece Material

Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Insert Length (mm)

6.52

Corner Radius (Inch)

1/64

Insert Shape

Trigon

Clearance Code

C

Rake Angle

6

Full Radius

No

Insert Shape Code

W

Chip Breaker

FM4

Secondary Workpiece Material Code

P

Insert Style

WCMT

Insert Size Code

32.51

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1730

Relief Angle

7

Inscribed Circle (Inch)

3/8

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

4.40

Maximum Depth of Cut (mm)

1.50

Manufacturer Grade

WSM20S

Length Range (Decimal Inch)

0.5000 - 0.6000

Corner Radius (mm)

0.40

Proprietary Coating Designation

WSM20S

Iso Code

WCMT06T304-FM4 WSM20S

Product Overview
Turning Insert: WCMT06T304-FM4 WSM20S, Solid Carbide Uncoated, Neutral, 6.52 mm Long, 3/8" Inscribed Circle, 0.4 mm Corner Radius, 80 degree Trigon, Series Tiger-tec Silver
