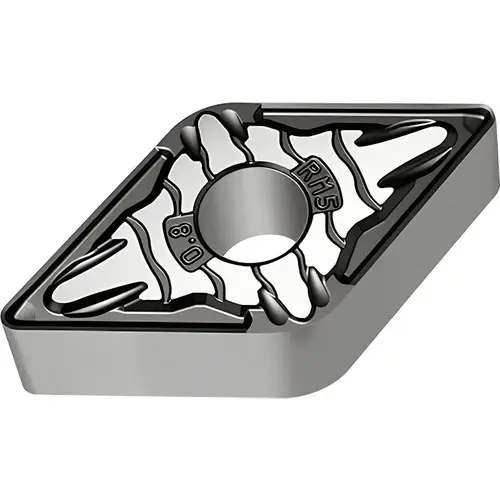

Turning Insert: DNMG150408-RM5 WSM30S, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

B Walter 6944743 Turning Insert: DNMG150408-RM5 WSM30S, Solid Carbide TiCN

Item #: 6944743 by B. Walter & Co.

Brand: B Walter

See reviewsSee reviews
See reviews summary
In Stock

$39.84

/each
SAVE UP TO 3.98
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1541 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Cutting Edge Style

Chamfered & Honed

Number of Cutting Edges

4

Standards

ANSI

Included Angle

55degree

Insert Material

Carbide

Series

DNMG-RM5

Coating Process

PVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0315

Manufacturers Catalog Number

6944743

Material Grade

M30

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000in

Width (Inch)

1/2in

Coating Classification

PVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.6104

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Lead Angle

55degree

Maximum Depth of Cut (Decimal Inch)

0.2000

Multi-use Tool

Yes

Rake

Negative

Secondary Workpiece Material

Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

15.50

Corner Radius (Inch)

1/32

Insert Shape

Diamond 55

Clearance Code

N

Rake Angle

20

Full Radius

No

Insert Shape Code

D

Chip Breaker

RM5

Secondary Workpiece Material Code

P

Insert Style

DNMG

Insert Size Code

432

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2030

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

5.16

Maximum Depth of Cut (mm)

4.00

Manufacturer Grade

WSM30S

Length Range (Decimal Inch)

0.6000 - 0.6500

Corner Radius (mm)

0.80

Proprietary Coating Designation

WSM30S

Iso Code

DNMG150408-RM5 WSM30S

Product Overview
Turning Insert: DNMG150408-RM5 WSM30S, Solid Carbide Coated, Neutral, 15.5 mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 55 degree Diamond, Series Tiger-tec Silver
