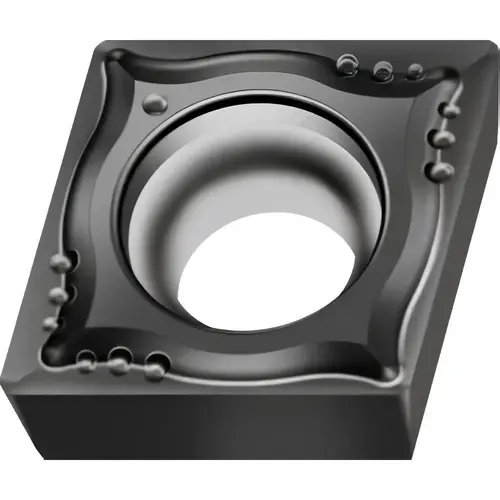

B Walter 7021251-XCP10 Turning Insert: CPGT060204-MM4 WSM01, Solid Carbide - pack of 10

Item #: 7021251-XCP10 by B. Walter & Co.

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$333.38

/package
SAVE UP TO 33.34
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 23 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

2

Standards

ANSI

Insert Thickness

2.38

Included Angle

80degree

Insert Material

Carbide

Series

CPGT-MM4

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0157

Manufacturers Catalog Number

7021251

Material Grade

M10

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.2540in

Width (mm - 2 Decimals)

6.45

Coating Classification

PVD

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.2540

Insert Thickness (Decimal Inch)

0.0938

Insert Thickness (Inch)

3/32

Lead Angle

80degree

Maximum Depth of Cut (Decimal Inch)

0.2540

Multi-use Tool

Yes

Rake

Positive

Secondary Workpiece Material

Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.2500

Insert Length (mm)

6.45

Corner Radius (Inch)

1/64

Insert Shape

Diamond 80

Clearance Code

P

Rake Angle

7

Full Radius

No

Insert Shape Code

C

Chip Breaker

MM4

Secondary Workpiece Material Code

P

Insert Style

CPGT

Insert Size Code

21.51

Tolerance Code

G

Hole Diameter (Decimal Inch)

0.1100

Relief Angle

11

Inscribed Circle (Inch)

1/4

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

2.80

Maximum Depth of Cut (mm)

6.45

Manufacturer Grade

WSM01

Length Range (Decimal Inch)

0.0000 - 0.3000

Inscribed Circle (mm)

6.35

Corner Radius (mm)

0.40

Proprietary Coating Designation

WSM01

Iso Code

CPGT060204-MM4 WSM01

Product Overview
Turning Insert: CPGT060204-MM4 WSM01, Solid Carbide TiAlN, Al2O3 & ZrN Coated, Neutral, 6.45 mm Long, 6.35 mm Inscribed Circle, 0.4 mm Corner Radius, 80 degree Diamond, Series CPGT-MM4
