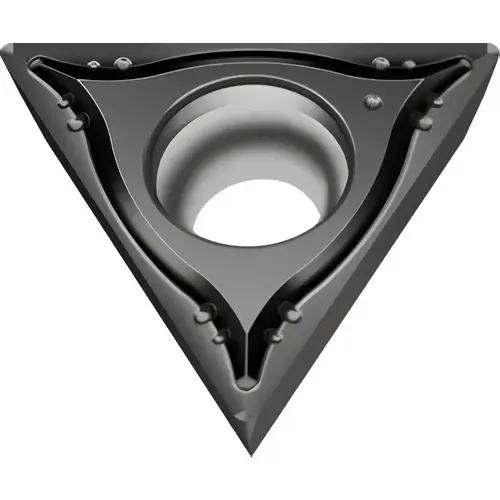

Turning Insert: TPGT110204-MM4 WSM01, Solid Carbide TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

B Walter 7021267 Turning Insert: TPGT110204-MM4 WSM01, Solid Carbide TiAlN

Item #: 7021267 by B. Walter & Co.

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$34.26

/each
SAVE UP TO 3.43
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 80 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Inscribed Circle (Inch)

1/4

Relief Angle

11

Hole Diameter (Decimal Inch)

0.1100

Tolerance Code

G

Insert Size Code

21.51

Insert Style

TPGT

Secondary Workpiece Material Code

P

Chip Breaker

MM4

Insert Shape Code

T

Full Radius

No

Rake Angle

7

Clearance Code

P

Insert Shape

Triangle

Corner Radius (Inch)

1/64

Insert Length (mm)

11.00

Inscribed Circle (Decimal Inch)

0.2500

Wiper Edge

No

Insert Hand

Neutral

Secondary Workpiece Material

Steel

Rake

Positive

Multi-use Tool

Yes

Maximum Depth of Cut (Decimal Inch)

0.4330

Lead Angle

60degree

Insert Thickness (Inch)

3/32

Insert Thickness (Decimal Inch)

0.0938

Insert Length (Decimal Inch)

0.4330

Insert Holding Method

Screw

Coating Classification

PVD

Width (mm - 2 Decimals)

11.00

Width (Decimal Inch - 4 Decimals)

0.4330in

Vendor Drop Ship

N

UNSPSC Code

23242105

Primary Workpiece Material Code

M

Primary Workpiece Material

Stainless Steel

Material Grade

M10

Manufacturers Catalog Number

7021267

Corner Radius (Decimal Inch)

0.0157

Coating/Finish

TiAlN

Coating Process

PVD

Series

TPGT-MM4

Insert Material

Carbide

Included Angle

60degree

Insert Thickness

2.38

Standards

ANSI

Number of Cutting Edges

3

Cutting Edge Style

Honed

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

2.80

Maximum Depth of Cut (mm)

11.00

Manufacturer Grade

WSM01

Length Range (Decimal Inch)

0.4000 - 0.5000

Inscribed Circle (mm)

6.35

Corner Radius (mm)

0.40

Proprietary Coating Designation

WSM01

Iso Code

TPGT110204-MM4 WSM01

Product Overview
Turning Insert: TPGT110204-MM4 WSM01, Solid Carbide TiAlN, Al2O3 & ZrN Coated, Neutral, 11 mm Long, 6.35 mm Inscribed Circle, 0.4 mm Corner Radius, 60 degree Triangle, Series TPGT-MM4
