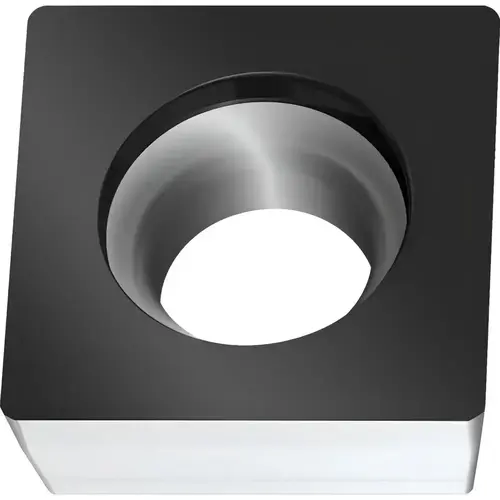

Turning Insert: SPMW09T308-RK6 WKK20S, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

B Walter 7021367 Turning Insert: SPMW09T308-RK6 WKK20S, Solid Carbide TiCN

Item #: 7021367 by B. Walter & Co.

See reviewsSee reviews
See reviews summary

$21.68

/each
SAVE UP TO 2.17
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

4

Standards

ANSI

Insert Thickness

3.97

Included Angle

90degree

Insert Material

Carbide

Series

SPMW-RK6

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0315

Manufacturers Catalog Number

7021367

Material Grade

K20

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

UNSPSC Code

23242105

Vendor Drop Ship

Y

Width (Decimal Inch - 4 Decimals)

0.3750in

Width (Inch)

3/8in

Width (mm - 2 Decimals)

9.52

Coating Classification

CVD

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.3750

Insert Thickness (Decimal Inch)

0.1563

Insert Thickness (Inch)

5/32

Lead Angle

90degree

Maximum Depth of Cut (Decimal Inch)

0.3750

Multi-use Tool

Yes

Rake

Positive

Secondary Workpiece Material

Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Insert Length (mm)

9.53

Corner Radius (Inch)

1/32

Insert Shape

Square

Clearance Code

P

Rake Angle

0

Full Radius

No

Insert Shape Code

S

Chip Breaker

RK6

Secondary Workpiece Material Code

P

Insert Style

SPMW

Insert Size Code

32.52

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1730

Relief Angle

11

Inscribed Circle (Inch)

3/8

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

4.40

Insert Length (Inch)

3/8

Maximum Depth of Cut (mm)

9.53

Manufacturer Grade

WKK20S

Length Range (Decimal Inch)

0.3000 - 0.4000

Inscribed Circle (mm)

9.53

Corner Radius (mm)

0.80

Proprietary Coating Designation

WKK20S

Iso Code

SPMW09T308-RK6 WKK20S

Product Overview
Turning Insert: SPMW09T308-RK6 WKK20S, Solid Carbide TiCN, Al2O3 & TiCN Coated, Neutral, 3/8" Long, 9.53 mm Inscribed Circle, 0.8 mm Corner Radius, 90 degree Square, Series SPMW-RK6
