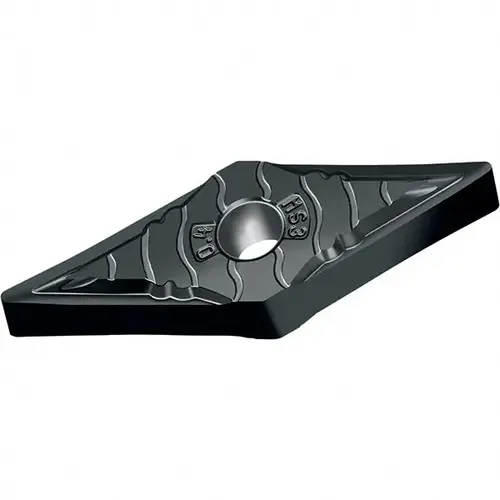

B Walter 7021462 Turning Insert: VNGG160401-MS3 WSM01 TiAlN

Item #: 7021462 by B. Walter & Co.

See reviewsSee reviews
See reviews summary
In Stock

$68.15

/each
SAVE UP TO 6.82
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 47 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

4

Standards

ANSI

Insert Thickness

4.76

Included Angle

35degree

Insert Material

Carbide

Series

VNGG-MS3

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0040

Manufacturers Catalog Number

7021462

Material Grade

M10

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3750in

Width (Inch)

3/8in

Width (mm - 2 Decimals)

16.61

Coating Classification

PVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.6540

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Lead Angle

35degree

Maximum Depth of Cut (Decimal Inch)

0.6540

Multi-use Tool

Yes

Rake

Negative

Secondary Workpiece Material

Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Insert Length (mm)

16.61

Insert Shape

Diamond 35

Clearance Code

N

Rake Angle

13

Full Radius

No

Insert Shape Code

V

Chip Breaker

MS3

Secondary Workpiece Material Code

P

Insert Style

VNGG

Insert Size Code

330.2

Tolerance Code

G

Hole Diameter (Decimal Inch)

0.1500

Relief Angle

0

Inscribed Circle (Inch)

3/8

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

3.81

Maximum Depth of Cut (mm)

16.61

Manufacturer Grade

WSM01

Length Range (Decimal Inch)

0.6500 - 0.7000

Inscribed Circle (mm)

9.53

Corner Radius (mm)

0.10

Proprietary Coating Designation

WSM01

Iso Code

VNGG160401-MS3 WSM01

Product Overview
Turning Insert: VNGG160401-MS3 WSM01 TiAlN, Al2O3 & ZrN Coated, Neutral, 16.61 mm Long, 9.53 mm Inscribed Circle, 0.1 mm Corner Radius, 35 degree Diamond, Series VNGG-MS3
