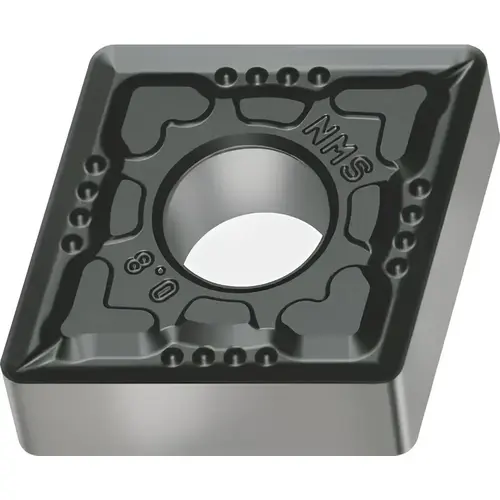

Turning Insert: CNMG120408-NMS WSM10S, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

B Walter 7053841-XCP10 Turning Insert: CNMG120408-NMS WSM10S, Solid Carbide - pack of 10

Item #: 7053841-XCP10 by B. Walter & Co.

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$259.70

/package
SAVE UP TO 25.97
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 13 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered & Honed

Number of Cutting Edges

4

Standards

ANSI

Insert Thickness

4.76

Included Angle

80degree

Insert Material

Carbide

Series

CNMG-NMS

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0315

Manufacturers Catalog Number

7053841

Material Grade

M1

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5080in

Width (mm - 2 Decimals)

12.90

Coating Classification

PVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5080

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Lead Angle

80degree

Maximum Depth of Cut (Decimal Inch)

0.5080

Multi-use Tool

Yes

Rake

Negative

Secondary Workpiece Material

Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Insert Length (mm)

12.90

Corner Radius (Inch)

1/32

Insert Shape

Diamond 80

Clearance Code

N

Rake Angle

18

Full Radius

No

Insert Shape Code

C

Chip Breaker

NMS

Secondary Workpiece Material Code

P

Insert Style

CNMG

Insert Size Code

432

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2030

Relief Angle

0

Inscribed Circle (Inch)

1/2

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

5.16

Maximum Depth of Cut (mm)

12.90

Manufacturer Grade

WSM10S

Length Range (Decimal Inch)

0.5000 - 0.6000

Inscribed Circle (mm)

12.70

Corner Radius (mm)

0.80

Proprietary Coating Designation

WSM10S

Iso Code

CNMG120408-NMS WSM10S

Product Overview
Turning Insert: CNMG120408-NMS WSM10S, Solid Carbide TiAlN, Al2O3 & Al Coated, Neutral, 12.9 mm Long, 12.7 mm Inscribed Circle, 0.8 mm Corner Radius, 80 degree Diamond, Series CNMG-NMS
