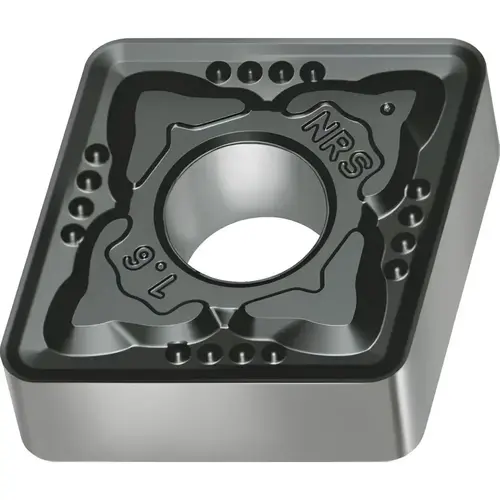

Turning Insert: CNMG190612-NRS WSM20S, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

B Walter 7053914 Turning Insert: CNMG190612-NRS WSM20S, Solid Carbide TiCN

Item #: 7053914 by B. Walter & Co.

Brand: B Walter

See reviewsSee reviews
See reviews summary
In Stock

$67.49

/each
SAVE UP TO 6.75
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 10 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Cutting Edge Style

Chamfered & Honed

Number of Cutting Edges

4

Standards

ANSI

Insert Thickness

6.35

Included Angle

80

Insert Material

Carbide

Series

CNMG-NRS

Coating Process

PVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0469

Manufacturers Catalog Number

7053914

Material Grade

M20

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.7616

Width (mm - 2 Decimals)

19.34

Coating Classification

PVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.7616

Insert Thickness (Decimal Inch)

0.2500

Insert Thickness (Inch)

1/4

Lead Angle

80

Maximum Depth of Cut (Decimal Inch)

0.7620

Multi-use Tool

Yes

Rake

Negative

Secondary Workpiece Material

Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.7500

Insert Length (mm)

19.34

Corner Radius (Inch)

3/64

Insert Shape

Diamond

Clearance Code

N

Rake Angle

19

Full Radius

No

Insert Shape Code

C

Chip Breaker

NRS

Secondary Workpiece Material Code

P

Insert Style

CNMG

Insert Size Code

643

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.3120

Relief Angle

0

Inscribed Circle (Inch)

3/4

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

7.93

Maximum Depth of Cut (mm)

19.34

Manufacturer Grade

WSM20S

Length Range (Decimal Inch)

0.7000 - 10.0000

Inscribed Circle (mm)

19.05

Corner Radius (mm)

1.20

Proprietary Coating Designation

WSM20S

Iso Code

CNMG190612-NRS WSM20S

Product Overview
Turning Insert: CNMG190612-NRS WSM20S, Solid Carbide TiAlN, Al2O3 & Al Coated, Neutral, 19.34 mm Long, 19.05 mm Inscribed Circle, 1.2 mm Corner Radius, 80 degree Diamond, Series CNMG-NRS
