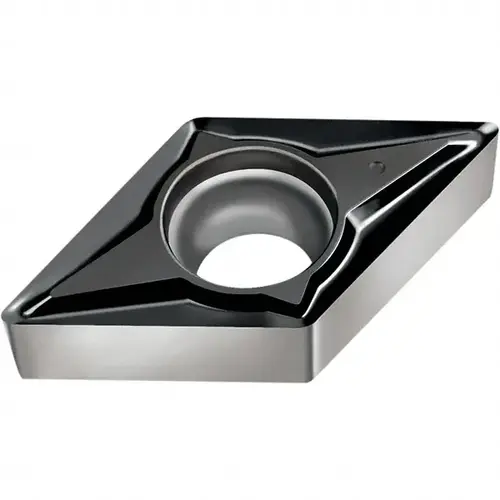

Turning Insert: DCGT070201-FM2 WSM20S, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

B Walter 7054054 Turning Insert: DCGT070201-FM2 WSM20S, Solid Carbide TiCN

Item #: 7054054 by B. Walter & Co.

See reviewsSee reviews
See reviews summary

$30.92

/each
SAVE UP TO 3.09
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

2

Standards

ANSI

Insert Thickness

2.38

Included Angle

55

Insert Material

Carbide

Series

DCGT-FM2

Coating Process

PVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0040

Manufacturers Catalog Number

7054054

Material Grade

M20

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.25

Width (Inch)

1/4

Width (mm - 2 Decimals)

7.75

Coating Classification

PVD

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.3050

Insert Thickness (Decimal Inch)

0.0938

Insert Thickness (Inch)

3/32

Lead Angle

55

Maximum Depth of Cut (Decimal Inch)

0.3050

Multi-use Tool

Yes

Rake

Positive

Secondary Workpiece Material

Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.2500

Insert Length (mm)

7.75

Insert Shape

Diamond

Clearance Code

C

Rake Angle

18

Full Radius

No

Insert Shape Code

D

Chip Breaker

FM2

Secondary Workpiece Material Code

P

Insert Style

DCGT

Insert Size Code

21.50.2

Tolerance Code

G

Hole Diameter (Decimal Inch)

0.1100

Relief Angle

7

Inscribed Circle (Inch)

1/4

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

2.80

Maximum Depth of Cut (mm)

7.75

Manufacturer Grade

WSM20S

Length Range (Decimal Inch)

0.3000 - 0.4000

Inscribed Circle (mm)

6.35

Corner Radius (mm)

0.10

Proprietary Coating Designation

WSM20S

Iso Code

DCGT070201-FM2 WSM20S

Product Overview
Turning Insert: DCGT070201-FM2 WSM20S, Solid Carbide TiAlN, Al2O3 & Al Coated, Neutral, 7.75 mm Long, 6.35 mm Inscribed Circle, 0.1 mm Corner Radius, 55 degree Diamond, Series DCGT-FM2
