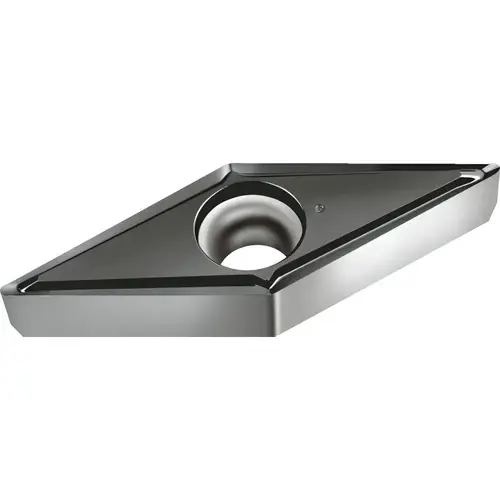

Turning Insert: VCGT110301-FM2 WSM20S, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

B Walter 7054077 Turning Insert: VCGT110301-FM2 WSM20S, Solid Carbide TiCN

Item #: 7054077 by B. Walter & Co.

See reviewsSee reviews
See reviews summary
In Stock

$46.84

/each
SAVE UP TO 4.68
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 89 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Honed

Number of Cutting Edges

2

Standards

ANSI

Insert Thickness

3.18

Included Angle

35degree

Insert Material

Carbide

Series

VCGT-FM2

Coating Process

PVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0040

Manufacturers Catalog Number

7054077

Material Grade

M20

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.2500in

Width (Inch)

1/4in

Width (mm - 2 Decimals)

11.07

Coating Classification

PVD

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.4360

Insert Thickness (Decimal Inch)

0.1250

Insert Thickness (Inch)

1/8

Lead Angle

35degree

Maximum Depth of Cut (Decimal Inch)

0.4360

Multi-use Tool

Yes

Rake

Positive

Secondary Workpiece Material

Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.2500

Insert Length (mm)

11.70

Insert Shape

Diamond 35

Clearance Code

C

Rake Angle

18

Full Radius

No

Insert Shape Code

V

Chip Breaker

FM2

Secondary Workpiece Material Code

P

Insert Style

VCGT

Insert Size Code

220.2

Tolerance Code

G

Hole Diameter (Decimal Inch)

0.1100

Relief Angle

7

Inscribed Circle (Inch)

1/4

Multi-Use Application

Turning

Hole Diameter (Mm) ( - 0 Decimals)

2.80

Maximum Depth of Cut (mm)

11.07

Manufacturer Grade

WSM20S

Length Range (Decimal Inch)

0.4000 - 0.5000

Inscribed Circle (mm)

6.35

Corner Radius (mm)

0.10

Proprietary Coating Designation

WSM20S

Iso Code

VCGT110301-FM2 WSM20S

Product Overview
Turning Insert: VCGT110301-FM2 WSM20S, Solid Carbide TiAlN, Al2O3 & Al Coated, Neutral, 11.07 mm Long, 6.35 mm Inscribed Circle, 0.1 mm Corner Radius, 35 degree Diamond, Series VCGT-FM2
