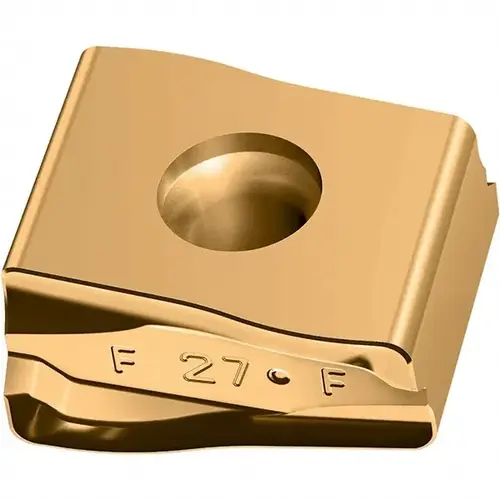

B Walter 7169044 Milling Insert: LNMX201012R-F57T WKP35G, WKP35G, Solid Carbide TiAlN

Item #: 7169044 by B. Walter & Co.

See reviewsSee reviews
See reviews summary
In Stock

$54.42

/each
SAVE UP TO 5.44
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 45 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered

Material Application

Steel

Length (mm)

20.00

ANSI Code

LNMX201012R-F57T WKP35G

Number of Cutting Edges

4

Standards

ANSI

Thickness (mm)

10.00

Insert Material

Solid Carbide

Series

LNMX

Coating Process

CVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0470

Length (Decimal Inch - 4 Decimals)

0.7870

Manufacturers Catalog Number

LNMX201012R-F57T

Material Grade

P35

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.3940

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.6710

Width (mm - 2 Decimals)

17.05

Coating Classification

CVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.7870

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.5390

Corner Radius (Inch)

3/64

Insert Shape

Rectangle

Rake Angle

16

Chip Breaker

F57T

Insert Style

LNMX

Insert Size Code

201012

Hole Diameter (Decimal Inch)

0.2169

Relief Angle

0.00

Included Angle Degree

90

Hole Diameter (Mm) ( - 0 Decimals)

0.22

Maximum Depth of Cut (mm)

20.00

Manufacturer Grade

WKP35G

Inscribed Circle Range (Decimal Inch)

0.5100 to 0.6000

Single or Double Sided Insert

Double

Cutter Series Compatibility

M3016

Length Range (Decimal Inch)

0.7000 to 0.9000

Thickness Range (Decimal Inch)

0.3500 to 0.5000

Inscribed Circle (mm)

13.70

Corner Radius (mm)

1.20

Iso Code

LNMX201012R-F57T WKP35G

Product Overview
Milling Insert: LNMX201012R-F57T WKP35G, WKP35G, Solid Carbide Coated, 10 mm Thick, 17.05 mm Wide
