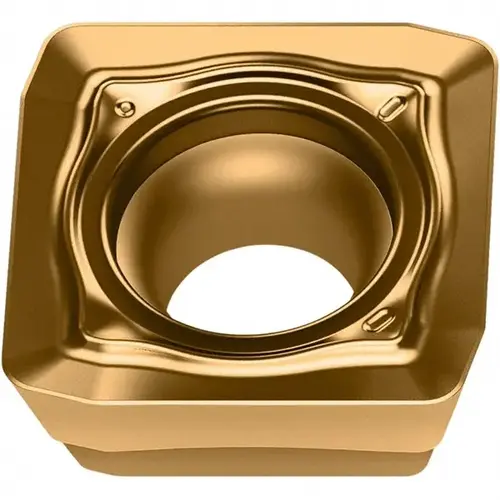

Milling Insert: SDMT09T3ZDR-D57 WKP35G, WKP35G, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

B Walter 7170575-XCP10 Milling Insert: SDMT09T3ZDR-D57 WKP35G, WKP35G, Solid Carbide - pack of 10

Item #: 7170575-XCP10 by B. Walter & Co.

Brand: B Walter

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$342.48

/package
SAVE UP TO 34.25
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 3 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Iso Code

SDMT09T3ZDR-D57 WKP35G

Corner Radius (mm)

0.80

Inscribed Circle (mm)

9.52

Thickness Range (Decimal Inch)

0.1500 to 0.1750

Length Range (Decimal Inch)

0.3200 to 0.4000

Cutter Series Compatibility

M4000

Single or Double Sided Insert

Single

Inscribed Circle Range (Decimal Inch)

0.3500 to 0.4000

Manufacturer Grade

WKP35G

Maximum Depth of Cut (mm)

9.52

Hole Diameter (Mm) ( - 0 Decimals)

0.15

Inscribed Circle (Inch)

3/8

Included Angle Degree

90

Relief Angle

15.00

Hole Diameter (Decimal Inch)

0.1539

Insert Size Code

09T3

Insert Style

SDMT

Chip Breaker

D57

Rake Angle

10

Insert Shape

Square

Corner Radius (Inch)

1/32

Inscribed Circle (Decimal Inch)

0.3750

Insert Hand

Right Hand

Rake

Positive

Multi-use Tool

Yes

Maximum Depth of Cut (Decimal Inch)

0.3750

Insert Holding Method

Screw

Coating Classification

CVD

Width (mm - 2 Decimals)

9.52

Width (Inch)

3/8

Width (Decimal Inch - 4 Decimals)

0.3750

Vendor Drop Ship

N

UNSPSC Code

23291601

Thickness (Inch)

5/32

Thickness (Decimal Inch - 4 Decimals)

0.1560

Primary Workpiece Material Code

P

Primary Workpiece Material

Steel

Material Grade

P35

Manufacturers Catalog Number

SDMT09T3ZDR-D57

Length (Inch)

3/8

Length (Decimal Inch - 4 Decimals)

0.3750

Corner Radius (Decimal Inch)

0.0310

Coating/Finish

TiAlN

Coating Process

CVD

Series

SDMT

Insert Material

Solid Carbide

Thickness (mm)

3.97

Standards

ANSI

Number of Cutting Edges

4

ANSI Code

SDMT09T3ZDR-D57 WKP35G

Length (mm)

9.52

Material Application

Steel

Cutting Edge Style

Honed

Product Overview
Milling Insert: SDMT09T3ZDR-D57 WKP35G, WKP35G, Solid Carbide Coated, 3.97 mm Thick, 3/8 Wide
