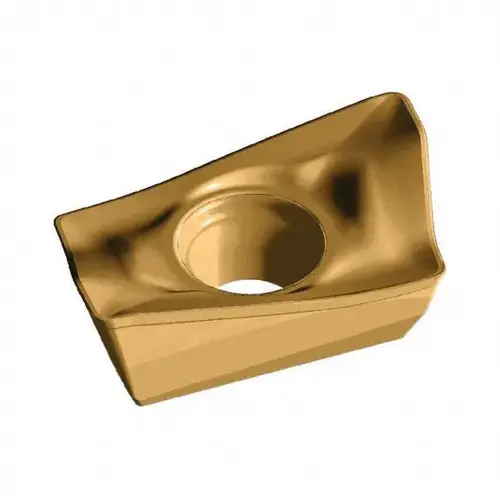

B Walter 7170583 Milling Insert: ADMT160640R-F56 WKP35G, WKP35G, Solid Carbide TiAlN

Item #: 7170583 by B. Walter & Co.

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$46.65

/each
SAVE UP TO 4.67
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 70 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered

Material Application

Steel

Length (mm)

17.50

ANSI Code

ADMT160640R-F56 WKP35G

Number of Cutting Edges

2

Standards

ANSI

Thickness (mm)

6.15

Insert Material

Solid Carbide

Series

ADMT

Coating Process

CVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.1570

Length (Decimal Inch - 4 Decimals)

0.6890

Manufacturers Catalog Number

ADMT160640R-F56

Material Grade

P35

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.2420

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.4250

Width (mm - 2 Decimals)

10.80

Coating Classification

CVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.6890

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.4250

Insert Shape

Parallelogram

Rake Angle

16

Chip Breaker

F56

Insert Style

ADMT

Insert Size Code

160640

Hole Diameter (Decimal Inch)

0.1728

Relief Angle

15.00

Included Angle Degree

85

Hole Diameter (Mm) ( - 0 Decimals)

0.17

Maximum Depth of Cut (mm)

17.50

Manufacturer Grade

WKP35G

Inscribed Circle Range (Decimal Inch)

0.4000 to 0.5000

Single or Double Sided Insert

Single

Cutter Series Compatibility

F2010

Length Range (Decimal Inch)

0.6500 to 0.7000

Thickness Range (Decimal Inch)

0.2350 to 0.2500

Inscribed Circle (mm)

10.80

Corner Radius (mm)

4.00

Iso Code

ADMT160640R-F56 WKP35G

Product Overview
Milling Insert: ADMT160640R-F56 WKP35G, WKP35G, Solid Carbide Coated, 6.15 mm Thick, 10.8 mm Wide
