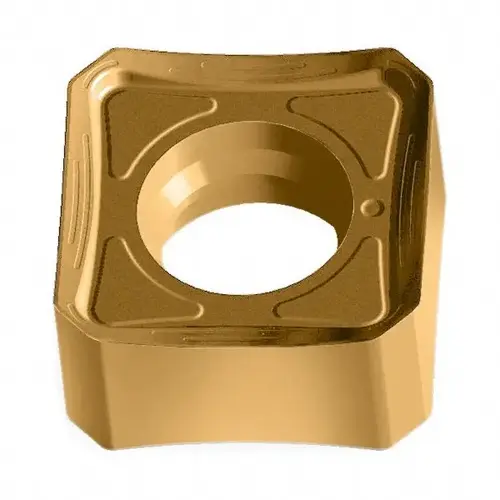

B Walter 7170609 Milling Insert: SNGX1205ANN-F57 WKP35G, WKP35G, Solid Carbide TiAlN

Item #: 7170609 by B. Walter & Co.

See reviewsSee reviews
See reviews summary
In Stock

$53.16

/each
SAVE UP TO 5.32
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 50 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered

Material Application

Steel

Length (mm)

12.70

ANSI Code

SNGX1205ANN-F57 WKP35G

Number of Cutting Edges

8

Standards

ANSI

Thickness (mm)

6.40

Insert Material

Solid Carbide

Series

SNGX

Coating Process

CVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0310

Length (Decimal Inch - 4 Decimals)

0.5000

Length (Inch)

1/2

Manufacturers Catalog Number

SNGX1205ANN-F57

Material Grade

P35

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.2180

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000

Width (Inch)

1/2

Width (mm - 2 Decimals)

12.70

Coating Classification

CVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.5000

Multi-use Tool

Yes

Rake

Negative

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/32

Insert Shape

Square

Rake Angle

16

Chip Breaker

F57

Insert Style

SNGX

Insert Size Code

1205

Hole Diameter (Decimal Inch)

0.2402

Relief Angle

0.00

Included Angle Degree

90

Inscribed Circle (Inch)

1/2

Hole Diameter (Mm) ( - 0 Decimals)

0.24

Maximum Depth of Cut (mm)

12.70

Manufacturer Grade

WKP35G

Inscribed Circle Range (Decimal Inch)

0.5000 to 0.5100

Single or Double Sided Insert

Double

Cutter Series Compatibility

F2010

Length Range (Decimal Inch)

0.5000 to 0.6000

Thickness Range (Decimal Inch)

0.2000 to 0.2200

Inscribed Circle (mm)

12.70

Corner Radius (mm)

0.80

Iso Code

SNGX1205ANN-F57 WKP35G

Product Overview
Milling Insert: SNGX1205ANN-F57 WKP35G, WKP35G, Solid Carbide Coated, 6.4 mm Thick, 1/2 Wide
