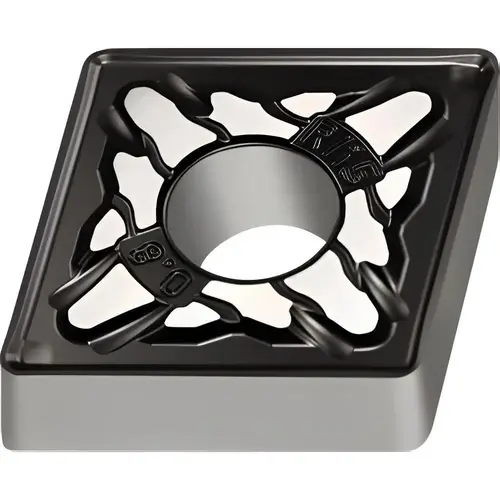

Turning Insert: CNMG643-RM5 WSM30S, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

B Walter 7251122-XCP10 Turning Insert: CNMG643-RM5 WSM30S, Solid Carbide - pack of 10

Item #: 7251122-XCP10 by B. Walter & Co.

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$542.85

/package
SAVE UP TO 54.29
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 20 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered & Honed

Number of Cutting Edges

4

Standards

ANSI

Included Angle

80degree

Insert Material

Carbide

Series

CNMG-RM5

Coating Process

PVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0469

Manufacturers Catalog Number

7251122

Material Grade

M30

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.7616in

Width (mm - 2 Decimals)

19.34

Coating Classification

PVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.7616

Insert Thickness (Decimal Inch)

0.2500

Insert Thickness (Inch)

1/4

Lead Angle

80degree

Maximum Depth of Cut (Decimal Inch)

0.7620

Multi-use Tool

Yes

Rake

Negative

Secondary Workpiece Material

Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.7500

Corner Radius (Inch)

3/64

Insert Shape

Diamond 80

Clearance Code

N

Rake Angle

20

Full Radius

No

Insert Shape Code

C

Chip Breaker

RM5

Secondary Workpiece Material Code

P

Insert Style

CNMG

Insert Size Code

643

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.3120

Relief Angle

0

Inscribed Circle (Inch)

3/4

Multi-Use Application

Turning

Manufacturer Grade

WSM30S

Iso Code

CNMG190612-RM5 WSM30S

Proprietary Coating Designation

WSM30S

Length Range (Decimal Inch)

0.7000 - 10.0000

Product Overview
Turning Insert: CNMG643-RM5 WSM30S, Solid Carbide TiAlN & Al2O3 Coated, Neutral, 0.762" Long, 3/4" Inscribed Circle, 0.047" Corner Radius, 80 degree Diamond, Series CNMG
