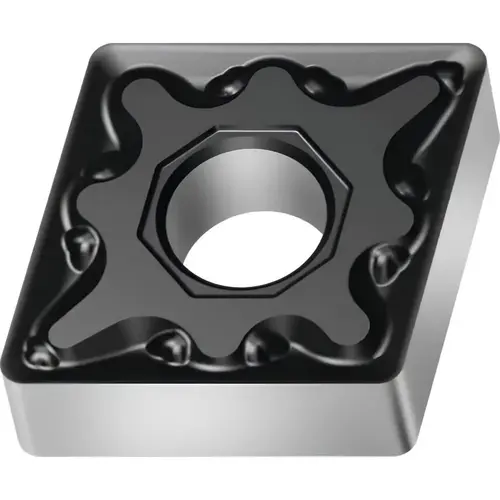

B Walter 7251895-XCP10 Turning Insert: CNMG431-MM5 WSM10S, Solid Carbide - pack of 10
Item #: 7251895-XCP10 by B. Walter & Co.
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Chamfered & Honed
Number of Cutting Edges
4
Standards
ANSI
Included Angle
80degree
Insert Material
Carbide
Series
CNMG-MM5
Coating Process
PVD
Coating/Finish
TiAlN
Corner Radius (Decimal Inch)
0.0157
Manufacturers Catalog Number
7251895
Material Grade
M1
Primary Workpiece Material
Stainless Steel
Primary Workpiece Material Code
M
UNSPSC Code
23242105
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.5080in
Width (mm - 2 Decimals)
12.90
Coating Classification
PVD
Insert Holding Method
Clamp
Insert Length (Decimal Inch)
0.5080
Insert Thickness (Decimal Inch)
0.1875
Insert Thickness (Inch)
3/16
Lead Angle
80degree
Maximum Depth of Cut (Decimal Inch)
0.5080
Multi-use Tool
Yes
Rake
Negative
Secondary Workpiece Material
Steel
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.5000
Corner Radius (Inch)
1/64
Insert Shape
Diamond 80
Clearance Code
N
Rake Angle
20
Full Radius
No
Insert Shape Code
C
Chip Breaker
MM5
Secondary Workpiece Material Code
P
Insert Style
CNMG
Insert Size Code
431
Tolerance Code
M
Hole Diameter (Decimal Inch)
0.2030
Relief Angle
0
Inscribed Circle (Inch)
1/2
Multi-Use Application
Turning
Manufacturer Grade
WSM10S
Length Range (Decimal Inch)
0.5000 - 0.6000
Proprietary Coating Designation
WSM10S
Iso Code
CNMG120404-MM5 WSM10S
Product Overview
Turning Insert: CNMG431-MM5 WSM10S, Solid Carbide TiAlN & Al2O3 Coated, Neutral, 0.508" Long, 1/2" Inscribed Circle, 0.016" Corner Radius, 80 degree Diamond, Series CNMG
