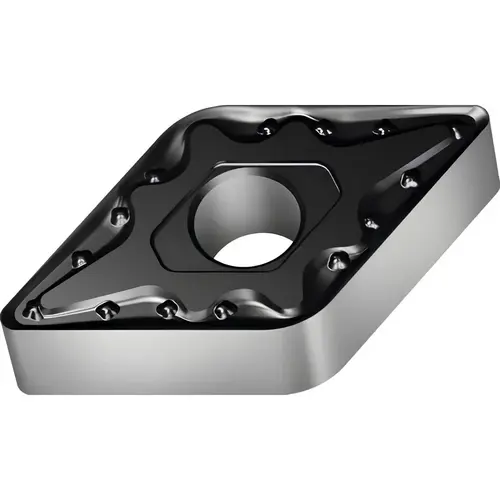

B Walter 7251943 Turning Insert: DNMG432-MM5 WSM10S, Solid Carbide TiAlN

Item #: 7251943 by B. Walter & Co.

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$32.94

/each
SAVE UP TO 3.29
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 240 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Primary Workpiece Material Code

M

Insert Shape

Diamond 55

Series

DNMG-MM5

Number of Cutting Edges

4

Included Angle

55degree

Insert Size Code

432

Wiper Edge

No

Coating Classification

PVD

Tolerance Code

M

Full Radius

No

Multi-use Tool

Yes

Length Range (Decimal Inch)

0.6000 - 0.6500

Multi-Use Application

Turning

Chip Breaker

MM5

Hole Diameter (Decimal Inch)

0.2030

Insert Thickness (Inch)

3/16

Corner Radius (Decimal Inch)

0.0315

Insert Shape Code

D

Primary Workpiece Material

Stainless Steel

Coating Process

PVD

Inscribed Circle (Decimal Inch)

0.5000

Standards

ANSI

Secondary Workpiece Material Code

P

Inscribed Circle (Inch)

1/2

Lead Angle

55degree

Manufacturer Grade

WSM10S

Proprietary Coating Designation

WSM10S

Insert Hand

Neutral

Manufacturers Catalog Number

7251943

Insert Style

DNMG

Corner Radius (Inch)

1/32

UNSPSC Code

23242105

Rake Angle

20

Width (mm - 2 Decimals)

15.50

Coating/Finish

TiAlN

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.6104

Material Grade

M1

Rake

Negative

Clearance Code

N

Cutting Edge Style

Chamfered & Honed

Relief Angle

0

Secondary Workpiece Material

Steel

Width (Decimal Inch - 4 Decimals)

0.5000in

Iso Code

DNMG150408-MM5 WSM10S

Maximum Depth of Cut (Decimal Inch)

0.6100

Vendor Drop Ship

N

Insert Thickness (Decimal Inch)

0.1875

Insert Material

Carbide

Width (Inch)

1/2in

Product Overview
Turning Insert: DNMG432-MM5 WSM10S, Solid Carbide TiAlN & Al2O3 Coated, Neutral, 0.61" Long, 1/2" Inscribed Circle, 0.031" Corner Radius, 55 degree Diamond, Series DNMG
