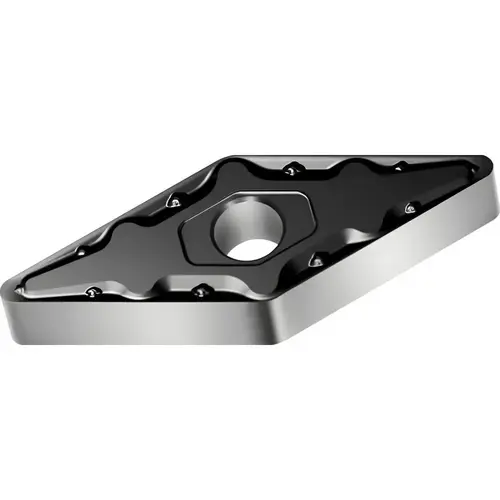

Turning Insert: VNMG331-MM5 WSM20S, Solid Carbide TiCN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

B Walter 7251975 Turning Insert: VNMG331-MM5 WSM20S, Solid Carbide TiCN

Item #: 7251975 by B. Walter & Co.

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$46.04

/each
SAVE UP TO 4.60
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 157 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered & Honed

Number of Cutting Edges

4

Standards

ANSI

Included Angle

35degree

Insert Material

Carbide

Series

VNMG-MM5

Coating Process

PVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0157

Manufacturers Catalog Number

7251975

Material Grade

M20

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3750in

Width (Inch)

3/8in

Width (mm - 2 Decimals)

16.61

Coating Classification

PVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.6540

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Lead Angle

35degree

Maximum Depth of Cut (Decimal Inch)

0.6540

Multi-use Tool

Yes

Rake

Negative

Secondary Workpiece Material

Steel

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.3750

Corner Radius (Inch)

1/64

Insert Shape

Diamond 35

Clearance Code

N

Rake Angle

20

Full Radius

No

Insert Shape Code

V

Chip Breaker

MM5

Secondary Workpiece Material Code

P

Insert Style

VNMG

Insert Size Code

331

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1500

Relief Angle

0

Inscribed Circle (Inch)

3/8

Multi-Use Application

Turning

Manufacturer Grade

WSM20S

Length Range (Decimal Inch)

0.6500 - 0.7000

Proprietary Coating Designation

WSM20S

Iso Code

VNMG160404-MM5 WSM20S

Product Overview
Turning Insert: VNMG331-MM5 WSM20S, Solid Carbide TiAlN & Al2O3 Coated, Neutral, 0.654" Long, 3/8" Inscribed Circle, 0.016" Corner Radius, 35 degree Diamond, Series VNMG
