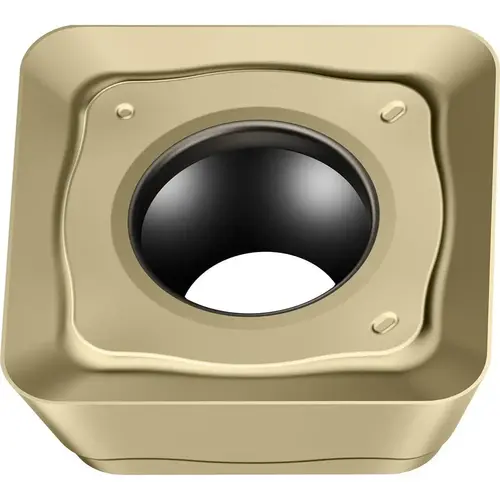

B Walter 7924352-XCP10 Milling Inserts; Insert Style: SPMT ; Insert Size: 060304 ; Insert Material: Carbide ; Insert Shape: Square ; Manufacturer Grade: WSP45G ; Corner Radius (Decimal Inch): 0.0157 - pack of 10

Item #: 7924352-XCP10 by B. Walter & Co.

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$199.50

/package
SAVE UP TO 19.95
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Maximum Depth of Cut (mm)

6.35

Manufacturer Grade

WSP45G

Single or Double Sided Insert

Single

Cutting Edge Effective Length (mm)

6.35

Inscribed Circle (mm)

6.35

Corner Radius (mm)

0.40

Iso Code

SPMT060304-F55 WSP45G

Cutting Edge Effective Length (Decimal Inch)

0.2500

Hole Diameter (Mm) ( - 0 Decimals)

2.8000

Inscribed Circle (Inch)

1/4

Relief Angle

11.000

Insert Size Code

06

Insert Style

SPMT

Chip Breaker

F55

Insert Shape

Square

Inscribed Circle (Decimal Inch)

0.2500

Insert Hand

Neutral

Maximum Depth of Cut (Decimal Inch)

0.2500

Insert Holding Method

Screw

Coating Classification

PVD

Width (mm - 2 Decimals)

6.35

Width (Decimal Inch - 4 Decimals)

0.2500

Vendor Drop Ship

N

UNSPSC Code

23291601

Thickness (Decimal Inch - 4 Decimals)

0.1252

Primary Workpiece Material Code

P

Primary Workpiece Material

Steel

Manufacturers Catalog Number

SPMT060304-F55 WSP45G

Length (Inch)

1/4

Length (Decimal Inch - 4 Decimals)

0.2500

Corner Radius (Decimal Inch)

0.0157

Coating/Finish

TiAlN/Al2O3/(ZrN)

Coating Process

PVD

Series

SPMT

Insert Material

Carbide

Cutting Direction

Neutral

Thickness (mm)

3.1800

Number of Cutting Edges

4

Length (mm)

6.35

Product Overview
Milling Inserts; Insert Style: SPMT ; Insert Size: 060304 ; Insert Material: Carbide ; Insert Shape: Square ; Manufacturer Grade: WSP45G ; Corner Radius (Decimal Inch): 0.0157
