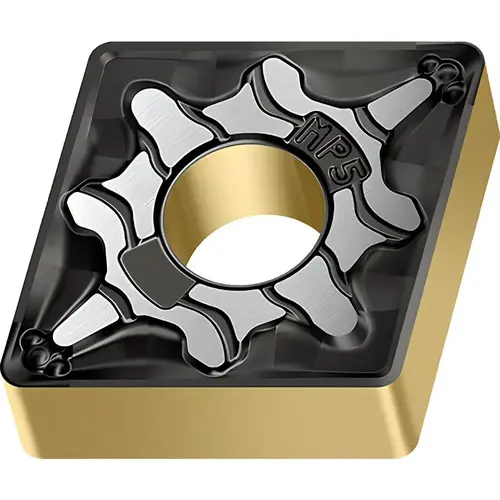

B Walter 8115568 Turning Insert: CNMG432-MP5 WPP10G, Carbide Al2O3
Item #: 8115568 by B. Walter & Co.
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Iso Code
CNMG120408-MP5 WPP10G
Proprietary Coating Designation
Multilayer Coating
Length Range (Decimal Inch)
0.5000 - 0.6000
Manufacturer Grade
WPP10G
Multi-Use Application
Turning
Inscribed Circle (Inch)
1/2
Relief Angle
0
Hole Diameter (Decimal Inch)
0.2030
Tolerance Code
M
Insert Size Code
432
Insert Style
CNMG
Secondary Workpiece Material Code
K
Chip Breaker
MP5
Insert Shape Code
C
Full Radius
No
Rake Angle
15
Clearance Code
N
Insert Shape
Diamond
Corner Radius (Inch)
1/32
Inscribed Circle (Decimal Inch)
0.5000
Wiper Edge
No
Insert Hand
Neutral
Secondary Workpiece Material
Cast Iron
Rake
Negative
Multi-use Tool
Yes
Maximum Depth of Cut (Decimal Inch)
0.5080
Lead Angle
80
Insert Thickness (Inch)
3/16
Insert Thickness (Decimal Inch)
0.1875
Insert Length (Decimal Inch)
0.5080
Insert Holding Method
Clamp
Coating Classification
CVD
Width (Decimal Inch - 4 Decimals)
0.508
Vendor Drop Ship
N
UNSPSC Code
23242105
Primary Workpiece Material Code
P
Primary Workpiece Material
Steel
Material Grade
P10
Manufacturers Catalog Number
8115568
Corner Radius (Decimal Inch)
0.0315
Coating/Finish
Al2O3
Coating Process
CVD
Series
CNMG-MP5
Insert Material
Carbide
Included Angle
80
Standards
ANSI
Number of Cutting Edges
4
Cutting Edge Style
Chamfered & Honed
Product Overview
Turning Insert: CNMG432-MP5 WPP10G, Carbide Al2O3, TiCN & TiN Coated, Neutral, 0.5080" Long, 0.5000" Inscribed Circle, 0.0315" Corner Radius, 80 deg Diamond 800, Series CNMG-MP5
