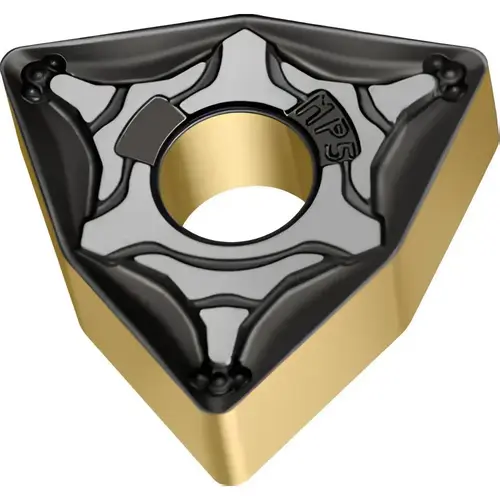

B Walter 8115896 Turning Insert: WNMG431-MP5 WPP30G, Carbide Al2O3
Item #: 8115896 by B. Walter & Co.
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Chamfered & Honed
Number of Cutting Edges
6
Standards
ANSI
Included Angle
80
Insert Material
Carbide
Series
WNMG-MP5
Coating Process
CVD
Coating/Finish
Al2O3
Corner Radius (Decimal Inch)
0.0157
Manufacturers Catalog Number
8115896
Material Grade
P30
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
UNSPSC Code
23242105
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.684
Coating Classification
CVD
Insert Holding Method
Clamp
Insert Length (Decimal Inch)
0.6840
Insert Thickness (Decimal Inch)
0.1875
Insert Thickness (Inch)
3/16
Lead Angle
80
Maximum Depth of Cut (Decimal Inch)
0.3420
Multi-use Tool
Yes
Rake
Negative
Secondary Workpiece Material
Stainless Steel
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.5000
Corner Radius (Inch)
1/64
Insert Shape
Trigon
Clearance Code
N
Rake Angle
15
Full Radius
No
Insert Shape Code
W
Chip Breaker
MP5
Secondary Workpiece Material Code
M
Insert Style
WNMG
Insert Size Code
431
Tolerance Code
M
Hole Diameter (Decimal Inch)
0.2030
Relief Angle
0
Inscribed Circle (Inch)
1/2
Multi-Use Application
Turning
Manufacturer Grade
WPP30G
Length Range (Decimal Inch)
0.6500 - 0.7000
Proprietary Coating Designation
Multilayer Coating
Iso Code
WNMG080404-MP5 WPP30G
Product Overview
Turning Insert: WNMG431-MP5 WPP30G, Carbide Al2O3, TiCN & TiN Coated, Neutral, 0.6840" Long, 0.5000" Inscribed Circle, 0.0157" Corner Radius, 80 deg Trigon, Series WNMG-MP5
