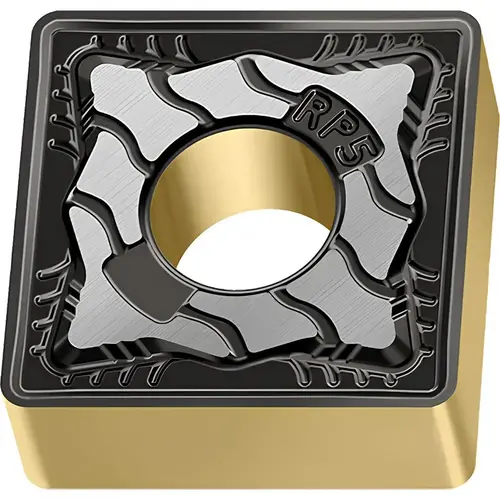

B Walter 8116142 Turning Insert: SNMG190616-RP5 WPP20G, Solid Carbide TiCN

Item #: 8116142 by B. Walter & Co.

See reviewsSee reviews
See reviews summary
In Stock

$62.13

/each
SAVE UP TO 6.21
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 458 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Chamfered

Number of Cutting Edges

8

Standards

ANSI

Included Angle

90

Insert Material

Carbide

Series

SNMG-RP5

Side Clearance

Negative

Coating Process

CVD

Coating/Finish

TiCN

Corner Radius (Decimal Inch)

0.0625

Manufacturers Catalog Number

8116142

Material Grade

P20

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.7500

Width (Inch)

3/4

Coating Classification

CVD

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.7500

Insert Thickness (Decimal Inch)

0.2500

Insert Thickness (Inch)

1/4

Lead Angle

90

Maximum Depth of Cut (Decimal Inch)

0.7500

Multi-use Tool

Yes

Rake

Negative

Secondary Workpiece Material

Cast Iron

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.7500

Corner Radius (Inch)

1/16

Insert Shape

S - Square

Clearance Code

N

Rake Angle

17

Full Radius

No

Insert Shape Code

S

Chip Breaker

RP5

Secondary Workpiece Material Code

K

Insert Style

SNMG

Insert Size Code

644

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.3120

Relief Angle

0

Inscribed Circle (Inch)

3/4

Multi-Use Application

Turning

Insert Length (Inch)

3/4

Chip Breaker Operation

Roughing

Manufacturer Grade

WPP20G

ISO Size Code

190616

Length Range (Decimal Inch)

0.7000 - 10.0000

ANSI Size Code

644

ISO Insert Code

SNMG190616

Proprietary Coating Designation

Multilayer Coating

Iso Code

SNMG190616-RP5 WPP20G

ANSI Insert Code

SNMG644

Product Overview
Turning Insert: SNMG190616-RP5 WPP20G, Solid Carbide TiCN, Al2O3 & TiN Coated, Neutral, 3/4" Long, 3/4" Inscribed Circle, 0.063" Corner Radius, 90 degree Square, Series SNMG
