B250PD Single Cylinder Deadbolt, Oil Rubbed Dark Bronze

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

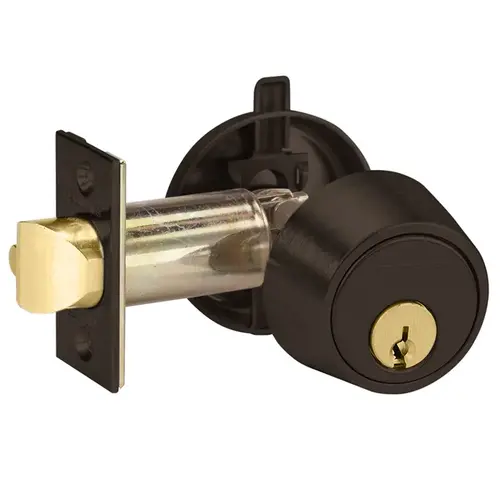

Schlage Commercial B250PD 613 B250PD Single Cylinder Deadbolt, Oil Rubbed Dark Bronze

Item #: B250PD 613 by Schlage Commercial

See reviewsSee reviews
See reviews summary
In Stock

$328.02

/each
SAVE UP TO 32.80
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 12 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Single Cylinder Deadlatch - Deadlocking Latchbolt Retracted by Key from Outside or by Inside Turn Unit, Hold Back Feature
  • ANSI Certified A156.36
  • 1-1/2" to 1-3/4" Door Range
  • 2-3/8" Backset
  • Commercial Grade 2

Thickness

1-1/2 In. - 1-3/4 In.

Strike Number

10-001

Latch Number

12-100

Color

Dark Oxidized Satin Bronze Oil Rubbed

Function

50-Single Cylinder Deadlatch (Night Latch)

Latch Type

Dead Latch (Guarded)

ANSI Function

E0122

Special Marks

Conventional cylinder

Dust Box

Plastic

Strike Width

1-1/8 In.

Latch Backset Dim

2-3/8 In.

Cylinder Type

Conventional

Lock Face Size

2-1/4 In. x 1-1/8 In.

Package Qty

1

Bolt Protection

1/2 In.

Color Code

613/US10B

Strike Type

T-Square Corner

Strike Height

2-3/4 In.

Finish

Oil Rubbed Dark Bronze

Backset

2-3/8 Inch, 1 x 2-1/4 Inch, Square Corner

Strike

T Strike

Series

B250 Series

Grade

ANSI/BHMA Grade 2

Keyway

Schlage C

Finish Description

Oil Rubbed Dark Bronze

Keyblank Grouping

SCHL-C-6-1

Rose/Escutcheon Trim

Round Rose

Product Type

Auxiliary Lock

Keying Charges

CCAM

Warranty

3 Year Limited

Latch Throw

9/16 Inch

Standards

A156.36-2010

Cylinder Type Used

Conventional

Interior Lock Type

Thumbturn

Exterior Lock Type

Keyed

Front Size

1-1/8" x 2-1/4"

Function Family

Single Cylinder Deadbolt

Features

Tough Nickel Silver Keys for Smooth, Long-Lasting Operation; Exclusive Concealed Wood Frame Reinforcer; Cylinder Collar Reinforced With Security Inserts; Thumbturn “Holdback" Feature Retains the Deadlatch in a Retracted Position When Desired

ADA Compliant

No

Finish Family

Dark Bronze

Cylinder Material

Solid Brass

Manufacturer Parent

Allegion

Latch Bolt Material

Brass

Sub-Series

CL_Deadbolt_Locks_schlage_commercial_54

Product Overview
B250 SeriesGrade 2 Deadlatch

The B250 operates as a deadlatch for situations where the non-handled function of a deadbolt is desired but in a self-locking form. This makes it ideal for pool gates as a double cylinder and similar applications where relocking is essential to security. When used on solid doors as a single cylinder with thumbturn, the holdback function allows the latch to remain retracted so the lock can be used as a nightlatch.

Specifications: Handing:
  • B250 Series deadlatches are reversible.
Door thickness:
  • 5-pin: 1 3/8" to 1 3/4" (35 mm to 44 mm) standard
Backset:
  • 2 3/8" (60 mm) standard
Front:
  • Brass, bronze or stainless steel. 1 1/8" x 2 1/4"
    (29 mm x 57 mm) square corner, beveled
Dead bolt:
  • 1" (25 mm) throw with saw-resistant hardened steel insert
Latch bolt:
  • Brass, 9/16" (14 mm) throw, deadlocking on keyed and exterior functions
Exposed trim:
  • Wrought or forged brass or bronze, or pressure cast zinc
Thumbturn:
  • Pressure cast zinc, plated to match finish symbols
Strike:
  • 1 1/8" x 2 3/4" (32 mm x 70 mm) with steel reinforcer and two 3" screws standard
Cylinder and keys:
  • 6-pin solid brass patented Everest 29 S123 keyway standard with two nickel silver keys per lock. Everest SL cylinders available in 7 pin Everest B and Everest 29 R keyway families only. Items specified in C keyway will be furnished 5-pin.
Keying options:
  • Interchangeable core and Primus XP high security cylinders. Master keying, grand master keying and construction keying.
Warranty:
  • Commercial: Three-year limited
Finishes:
  • 605 - Bright brass
  • 606 - Satin brass
  • 609 - Antique brass
  • 612 - Satin bronze
  • 613 - Oil rubbed bronze
  • 622 - Matte black
  • 625 - Bright chrome plated
  • 626 - Satin chrom plated
  • 626AM - Anti-microbial coating
Certifications: ANSI:
  • B250 Series meet or exceed A156.36-2010 Grade 2 strength and operational requirements.
UL437 Listed locking cylinder optional:
  • Specify Primus 20-500 Series cylinder B250 Series Grade 2 products.
ADA compliant:
  • Schlage Lock Company offers a wide selection of locks designed to meet the Americans with Disabilities Act.
