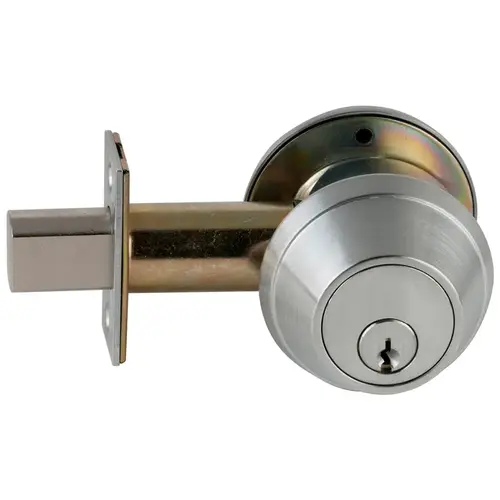

Schlage B660P 626X625 Single Cylinder Deadbolt, Grade 1, 2-3/4" Backset, Satin Chrome and Bright Chrome
Item #: B660P 626X625 by Schlage Commercial
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Thickness
1-5/8 In. - 2 In.
Strike Number
10-094
Latch Number
12-631
Color
Satin Chrome and Bright Chrome
Function
660-Single Cylinder Deadbolt Lock
Latch Type
Deadbolt
ANSI Function
E0151 - Single Cylinder Deadbolt
Secondary Finish
625/US26
Special Marks
Conventional cylinder
Dust Box
None
Strike Width
1-1/8 In.
Latch Backset Dim
2-3/4 In.
Cylinder Type
Conventional Cylinder
Lock Face Size
2-1/4 In. x 1-1/8 In.
Package Qty
1
Secondary Finish Description
Bright Chrome
Bolt Protection
1 In.
Color Code
626/US26D
Strike Type
Flat
Keyway
S123
Strike Height
2-3/4 In.
Series
B600 Series
Finish
Satin Chrome by Bright Chrome
UL Listing Type
UL Listed for 3 Hour Fire Door
Dimension
2-5/8" Diameter
Strike Dimension
1-1/8" x 2-3/4"
No of inners
1
Strike
Square Corner Deadbolt Strike
Door Range
1-5/8" to 2"
No Of Pins
6 Pin Cylinder
Door Thickness
1-5/8" to 2"
Finish code
626 x 625
Material
Zinc Base
Cross Bore Size
1-1/2" or 2-1/8" Bore
Backset
Adjustable 2-3/8" or 2-3/4" Backset
Latch Faceplate Dimension
1-1/8" x 2-1/4"
Manufacturer Warranty
Limited 3 Year Mechanical Warranty
Hazardous Material
No
Product Overview
Grade 1 Single Cylinder Deadbolt C Keyway with 12296 Latch and 10094 Strike Satin Chrome by Bright Chrome Finish
