CRL T607CU605 Backer Rod Insert Tool Set

CRL Backer Rod Insert Tool Set allows proper insertion of backer rod into the joint for a proper joint sealing. The assortment of rollers makes the insertion of backer rod diameters of 1/8" (3 mm) and larger possible. The nylon wheels will not damage the backer rod or scratch adjacent channel walls. The tool assures uniformity as it can be set according to the desired depth. Complete set includes a Standard Backer Rod Insertion Tool and the Backer Rod Insertion Tool for Close Quarters. CRL Backer Rod Insert Tool Set is designed for the following applications: Masonry expansion wall joints, precast panel wall joints, pavement/floor joints, EIFS/stucco joints. The main frame will accommodate a standard threaded broom handle if desired. The Backer Rod Insertion tool for Close Quarters is designed for the following applications: Window perimeters, steps, curtain walls, and corners. Backer Rod Insert Tool Set Includes: • Two Roller Frame Units • Insertion Wheels of 1/8" (3 mm), 1/4" (6 mm), 3/8" (9.5 mm), 1/2" (12 mm) • One Handle Knife Adapter • Complete Instructions DS 06/27/2016

From Manufacturer

The CRL Backer Rod Insert Tool Set is the quickest, easiest, and safest way to install backer rod. The proper insertion of backer rod into the joint is imperative to proper joint sealing. The assortment of rollers allow insertion of backer rod diameters of 1/8" (3 mm) and larger. The tool allows you to set the desired depth to assure uniformity. The nylon wheels won't damage the backer rod, or scratch adjacent channel walls.
Complete set includes a Standard Backer Rod Insertion Tool and the Backer Rod Insertion Tool for Close Quarters. The Standard Backer Rod Insertion Tool is designed for the following applications: Masonry expansion wall joints, precast panel wall joints, pavement/floor joints, EIFS/stucco joints. The main frame will accommodate a standard threaded broom handle if desired. The Backer Rod Insertion tool for Close Quarters is designed for the following applications: Window perimeters, steps, curtainwalls, and corners.

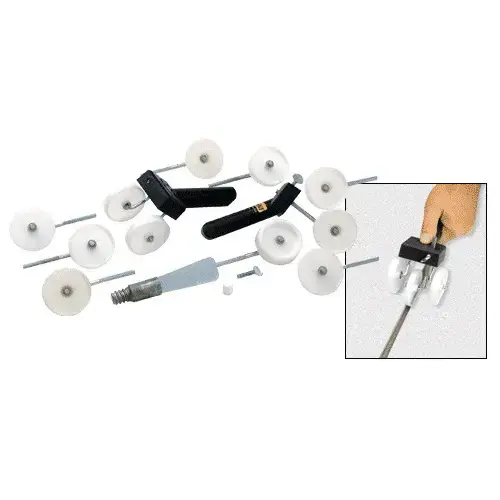

Backer Rod Insert Tool Set Includes:

Two Roller Frame Units

Insertion Wheels of 1/8" (3 mm), 1/4" (6 mm), 3/8" (10 mm), 1/2" (12 mm)

One Handle Knife Adapter

Complete Instructions
