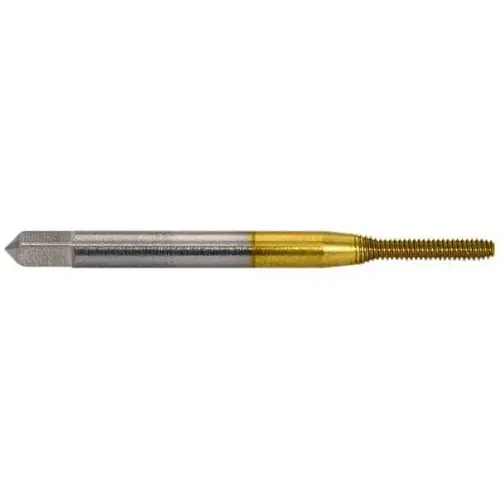

Thread Forming Tap: M2.6x0.45 Metric Coarse, 6H Class of Fit, Bottoming, High Speed Steel, TiN Coated Titanium Nitride

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Balax 17516-01T Thread Forming Tap: M2.6x0.45 Metric Coarse, 6H Class of Fit, Bottoming, High Speed Steel, TiN Coated Titanium Nitride

Item #: 17516-01T by Balax

See reviewsSee reviews
See reviews summary

$36.20

/each
SAVE UP TO 3.62
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Material

High-Speed Steel

Application

Blind Hole Threading

Overall Length (mm)

46.04

Thread Direction

Right Hand

Series

BXMB

Thread Size (mm)

M2.6x0.45

Thread Standard

Metric

Chamfer

Bottoming

Class Of Fit

6H

Coating/Finish

Titanium Nitride

Coolant Through

No

Overall Length (Decimal Inch)

1.8125

Overall Length (Inch)

1-13/16

Shank Diameter (Decimal Inch)

0.1410

Shank Diameter (mm)

3.58

Square Size (Decimal Inch)

0.1100

Square Size (mm)

2.79

Thread Length (Decimal Inch)

0.5000

Thread Length (Inch)

1/2

UNSPSC Code

23241600

Vendor Drop Ship

N

Chamfered Threads

2.5P

Thread Limit

D6

Oil Grooves

0

Product Overview
Thread Forming Tap: M2.6x0.45 Metric Coarse, 6H Class of Fit, Bottoming, High Speed Steel, TiN Coated 1/2" Thread Length, D6, Series BXMB
