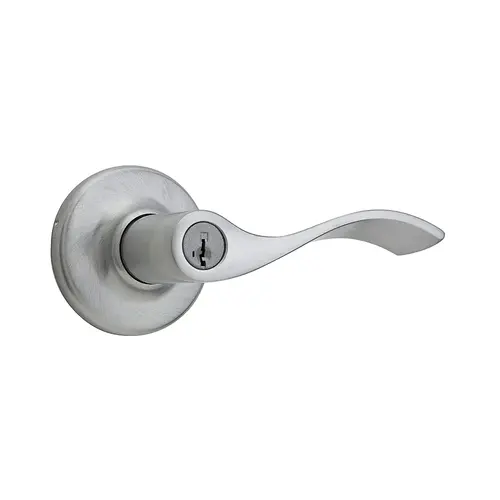

Kwikset 405BL-26DSV1 Balboa Entry Door Lock SmartKey with New Chassis and 6AL Latch and RCS Strike Satin Chrome Finish
Item #: 405BL-26DSV1 by Kwikset
UPC #: 883351618953
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Key it Yourself: Lock is rekeyable by using the included learn tool in less than 30 seconds without removing the lock from the door.
- Includes a fully adjustable latch to fit all standard door preparations.
- Includes Round Corner, Square Corner and Drive-In Latch Faceplates. A latch faceplate is the plate that is installed against the latch on the door.
- Includes Standard Round Corner Strike Plate Part Number 83796 (A Strike Plate is the plate on Door Jamb that the latch secures against when the door is closed). To order a Square Corner Strike Plate See Product: Kwikset 83437. For a T-Strike Plate See: Kwikset 83028.
- ANSI/BHMA Grade 3 Security
- Interior Rosette has EXPOSED SCREWS and are not concealed on the interior side.
- Lifetime mechanical and finish warranty.
- Features KwikInstall for Easy Installation
- Easily change your keying for extra security with Kwikset's Smart Key featuring Bump Guard
Finish
Satin Chrome
Function
Single Cylinder
Design
BaLboa
Panic Proof
No
Collection
BaLboa
Concealed Screws
No
Backset
2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4"
Cylinder
SmartKey 5 Pin
Door Thickness
1-1/2", 1-3/4", 1-3/8", 1-5/8"
Shape
Wave
Rosette Shape
Round
BHMA Certification
Grade 3
Latch Faceplate
Drive-In, Round Corner, Square Corner
SmartKey
Yes
Locking Mechanism
Thumbturn
Product Class
Residential
Theme
Transitional
ADA
No
Cross Bore
2-1/8"
Handle Style
Lever
Handle Material
Metal
Handing
Left, Reversible, Right
Strike
Round Corner Full Lip Strike
Grade
ANSI/BHMA Grade 3
Application
For Use on Exterior Doors Where Keyed Entry and Security is Needed
Warranty
Lifetime Mechanical and Finish
Color Code
626/US26D
Keyway
Kwikset KW1
Bolt Throw
1/2 Inch
Cylinder Type
SMT SmartKey
Finish Description
Satin Chrome
Latch Type
6-Way Adjustable
Product Height
2-5/8 Inches
Product Length
4.22 Inches
Strike Type
Round Corner Full Lip
ADA Compliant
YES
Finish Family
Satin Chrome
Included Components
Latch; Screws; Strike; Levers; (2) Keys; Allen wrench; Smartkey Tool
Lever Style
BL-BaLboa
Strike Size
2-1/4 Inch
Keyblank Grouping
KWIK-KW1-5-1
Rose/Escutcheon Trim
Round Rose
Door Cross Bore
2.125 Inch
Keying Charges
Residential-Conventional
Product Material
Zinc
Standards
ANSI/BHMA A156.2
Faceplate Dimension
1" x 2-1/4"
Door Preparation
Cross Bore 2-1/8"; Edge Bore 1"
Function Description
Both sides locked or unlocked by key outside or push button inside
Function Family
Entry/Entrance/Office
Product Projection
2-23/32 Inch
Features
Easily Installs in Minutes With Just a Screwdriver; Locking Mechanism Functions With Turn Piece on the Interior of the Lock; Featuring Smartkey Security™
Product Type
Cylindrical Lock
Manufacturer Parent
Spectrum
Lever Length-Inches
4.25 Inch
Box Dimensions (L x W x H)
2.97x5.77x6.8
Sub-Series
RL_Lever_Locksets_kwikset_124
