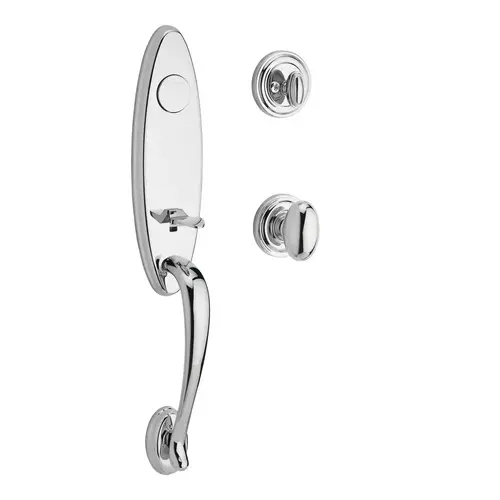

Baldwin FD-CHE-ELL-TRR-260 Chesapeake Handleset with Ellipse Knob Polished Chrome
Item #: FD-CHE-ELL-TRR-260 by Baldwin
UPC #: 884011565594
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Projection
2.8889
Finish
Polished Chrome
Grade
ANSI/BHMA Grade 2
Function
FD-Full Dummy
Door Thickness
1-3/4" to 2"
Mount
3/4 Escutcheon
Handle Style
CHE-Chesapeake
Knob Diameter
2.4375
Bore Size
2.1250
Finish Description
Bright Polished Chrome
Product Height
18-1/4 Inches
Product Length
3-1/8 Inches
Included Components
Dummy Outside Grip Handle, inside lever trim, mounting hardware
Knob style
ELL-Ellipse
Rose/Escutcheon Trim
TRR-Traditional Round Rose
Product Material
Forged Brass
Product Type
Handleset
Series
Baldwin Reserve
Box Length
22.1300
Box Width
6.3800
Box Height
3.2500
Application
Residential
Warranty
Lifetime Limited Mechanical/Finish
Color Code
260
ADA Compliant
No
Finish Family
Polished Chrome
Standards
ANSI/BHMA
Function Family
Dummy
Features
6 Way Adjustable (6L) Front & Latch; Deadbolt Features 1" Throw Brass Bolt Latch; Grip Offers 1/2" Passage/Privacy Function Bolt; Knob/Lever Rotate At 55°- 60°; 5-1/2" Center to Center Tubular Bore
Manufacturer Parent
Spectrum
Box Dimensions (L x W x H)
3.25"x6.38"x22.13"
Sub-Series
FD-CHE-ELL-TRR
Product Overview
- Chesapeake Handleset, with Ellipse Knob
- Solid forged brass construction
- Shown in Single Cylinder function. Other functions available
- Shown with Ellipse Knob and Traditional Round Rose, can be customized with other interior Reserve style knob, lever or rose
- To personalize your look, this Traditional inspired design is available in 7 finishes
- Solid brass deadbolt latch with hardened steel roll pin for additional strength and security
- Accommodates 5-1/2" center to center dimension ONLY
- Accommodates door thickness 1-3/4" to 2". Up to 2-1/2" thick door with service part kit (8BR0703-xxx)
- Baldwin 5-pin C-Keyway standard. SmartKey Re-Key Technology optional
- Adjustable backset latch fits 2-3/8" (60mm) or 2-3/4" (70mm) pre-bored doors
- Handing only required when ordering lever interior style
- Functions available: single cylinder, double cylinder and full dummy
- Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty
