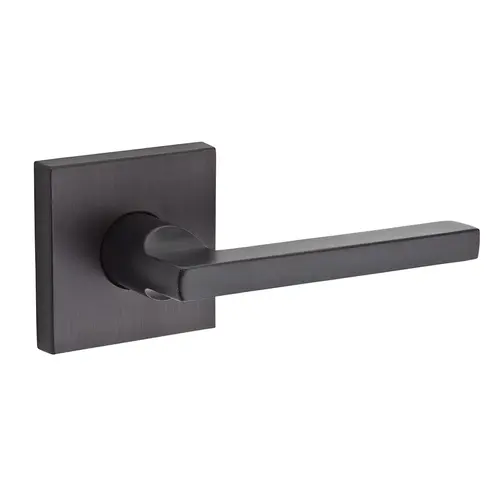

Baldwin HD-SQU-R-CSR-112 Square Reserve Lever Venetian Bronze
Item #: HD-SQU-R-CSR-112 by Baldwin
UPC #: 884011470119
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Projection
2.2188
Finish
Venetian Bronze
Grade
ANSI/BHMA Grade 2
Function
HD-Half Dummy
Door Thickness
1-3/8" to 2"
Finish Description
Venetian Bronze
Product Height
2-9/16"
Product Length
2.2500
Included Components
Dummy Lever, trim, rose, mounting hardware
Lever Style
SQU-Square
Rose/Escutcheon Trim
CSR-Contemporary Square Rose
Product Material
Brass
Product Type
Cylindrical Lock
Series
Baldwin Reserve
Box Length
5.4400
Box Width
5.3800
Box Height
3.5000
Hand
Right Hand
Handing
RH
Warranty
Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty
Color Code
1-1/2 Inch.
ADA Compliant
No
Finish Family
Dark Bronze
Standards
ANSI/BHMA Grade 2
Function Description
Non-turning pull trim
Function Family
Dummy
Features
Easy-To-Install Spring Assisted Chassis for Optimal Operational Strength; Exposed Screws
Manufacturer Parent
Spectrum
Box Dimensions (L x W x H)
10.5"x5.19"x3.31"
Sub-Series
RL_Lever_Locksets_Baldwin_45
Product Overview
Square Reserve LeverProduct Highlights:
- Square Reserve Lever, with Contemporary Square Rose
- Solid forged brass construction.
- Shown in Passage function. Other functions available.
- Shown with Contemporary Square Rose, can be customized with other Reserve roses.
- To personalize your look, this Contemporary inspired design is available in 5 finishes.
- All privacy function knobs and levers are available with push-button locking: easily unlock the door by turning the knob or lever; manual unlocking is not required.
- Features easy-to-install spring assisted chassis for optimal operational strength.
- 2-1/8" cross bore and 1" edge bore for latch.
- Accommodates door thickness 1-3/8" to 2". Up to 2-1/2" thick door door with service part kit.
- Keyed entry featuring the traditional Baldwin pin and tumbler C-keyway offered for all Reserve lever styles.
- Adjustable backset latch fits 2-3/8" (60mm) or 2-3/4" (70mm) pre-bored doors.
- Reversible for all functions except half dummy.
- Functions available: entry, privacy, passage, full dummy, and half dummy.
- Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty
- Exposed screws
