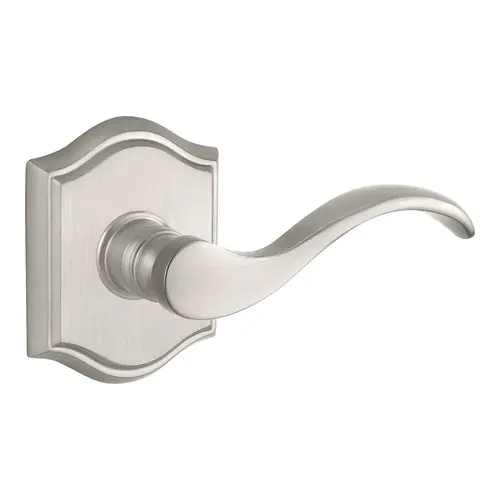

Curve Reserve Lever Satin Nickel

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Baldwin PV-CUR-R-TAR-150Click To Copy Curve Reserve Lever Satin Nickel

Item #: PV-CUR-R-TAR-150 by Baldwin

UPC #: 884011487247

See reviewsSee reviews

$138.66

/each
SAVE UP TO 13.87

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Projection

2.5313

Finish

Satin Nickel

Grade

ANSI/BHMA Grade 2

Backset

2-3/8 Inch or 2-3/4 Inch

Function

PV-Privacy

Door Thickness

1-3/8" to 2"

Strike

SS-Square Corner

Bore Size

2.1250

Finish Description

Satin Nickel

Product Height

3-7/16 Inches

Product Length

3.9688

Lever Style

CUR-Curve

Rose/Escutcheon Trim

TAR-Traditional Arch Rose

Product Material

Brass

Product Type

Cylindrical Lock

Series

Baldwin Reserve

Box Length

10.4400

Box Width

5.2500

Box Height

3.3100

Manufacturer Parent

Spectrum

Handing

RH

Latch Type

Adjustable

Function Description

Outside knob/lever locked by pushbutton on inside knob/lever. Rotating inside knob/lever or closing door releases/unlocks button. Emergency release in outside knob/lever.

ANSI Function

F76

Hand

Right Hand

Sub-Series

RL_Lever_Locksets_Baldwin_111

ADA Compliant

No

Door Cross Bore

2.125 Inch

Box Dimensions (L x W x H)

3.31"x5.25"x10.44"

Function Family

Privacy/Bedroom/Bathroom

Standards

ANSI/BHMA Grade 2

Product Projection

2.5313 Inch

Features

Easy-To-Install Spring Assisted Chassis for Optimal Operational Strength; Exposed Screws; Push-Button Locking

Color Code

150

Strike Type

Square Corner

Warranty

Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty

Finish Family

Satin Nickel

Product Overview
Curve Reserve LeverProduct Highlights:
  • Curve Reserve Lever, with Traditional Arch Rose
    Solid forged brass construction.
  • Shown in Passage function. Other functions available.
  • Shown with Traditional Arch Rose, can be customized with other Reserve roses.
  • To personalize your look, this Traditional inspired design is available in 7 finishes.
  • All privacy function knobs and levers are available with push-button locking: easily unlock the door by turning the knob or lever; manual unlocking is not required.
  • Features easy-to-install spring assisted chassis for optimal operational strength.
  • 2-1/8"" cross bore and 1"" edge bore for latch.
  • Accommodates door thickness 1-3/8"" to 2"". Up to 2-1/2"" thick door with service part kit (8BR0707-xxx).
  • Keyed entry featuring the traditional Baldwin pin and tumbler C-keyway offered for all Reserve lever styles.
  • Adjustable backset latch fits 2-3/8"" (60mm) or 2-3/4"" (70mm) pre-bored doors.
  • Reversible for all functions except half dummy.
  • Functions available: entry, privacy, passage, full dummy and half dummy.
  • Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty.
  • Exposed screws
