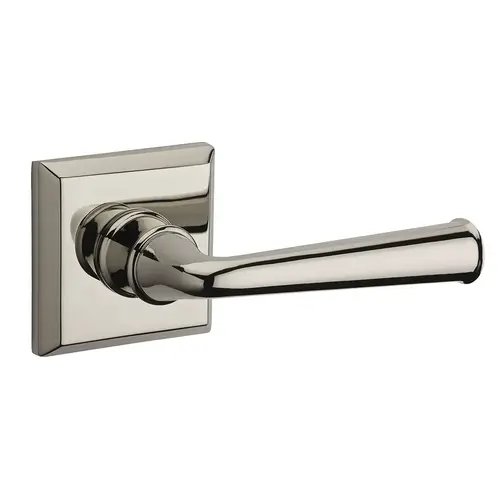

Baldwin Reserve PVFEDTSR055 Privacy Federal Lever and Traditional Square Rose with 6AL Latch and Dual Strike Lifetime Bright Nickel Finish - 141 Finish Replaced by 055 *
Item #: PVFEDTSR055 by Baldwin
UPC #: 00884011835512
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Privacy Lever Set
- Federal Lever And Traditional Square Rose
- 2-3/8" To 2-3/4" Adjustable Backset
- Solid Forged Brass
- Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty
Finish
Lifetime Bright Nickel
Function
Privacy
Series
Reserve
Grade
ANSI/BHMA Grade 2
Backset
2-3/8 Inch or 2-3/4 Inch
Warranty
Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty
Color Code
055
Door Thickness
1-3/8" to 2"
Strike
SS-Square Corner
Finish Description
Bright Polished Nickel
ANSI Function
F76
Latch Type
Adjustable
Product Height
2-19/32 Inches
Strike Type
Square Corner
ADA Compliant
No
Finish Family
Polished Nickel
Lever Style
FED-Federal
Rose/Escutcheon Trim
TSR-Traditional Square Rose
Door Cross Bore
2.125 Inch
Product Material
Brass
Standards
ANSI/BHMA Grade 2
Function Description
Outside knob/lever locked by pushbutton on inside knob/lever. Rotating inside knob/lever or closing door releases/unlocks button. Emergency release in outside knob/lever.
Function Family
Privacy/Bedroom/Bathroom
Product Projection
2.5000 Inch
Features
Easy-To-Install Spring Assisted Chassis for Optimal Operational Strength; Exposed Screws; Push-Button Locking
Product Type
Cylindrical Lock
Manufacturer Parent
Spectrum
Box Dimensions (L x W x H)
3.31"x5.25"x10.44"
Sub-Series
RL_Lever_Locksets_Baldwin_120
Dimension
4-1/4" Lever Length x 2-3/4" Projection, 2-19/32" x 2-19/32" Rose
Material
Brass
Handing
Reversible
Manufacturer Warranty
Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty
Rose/Escutcheon Design
Traditional Square Rose
Door Range
1-3/4" to 2"
Hazardous Material
No
Strike Dimension
1-5/8" x 2-1/4"
Cross Bore Size
2-1/8" Bore
Finish code
055
Design
Federal Lever and Traditional Square Rose
Latch Faceplate Dimension
1" x 2-1/4"
Lever Knob Design
Federal Lever
No of inners
1
Product Overview
Privacy Federal Lever and Traditional Square Rose with 6AL Latch and Dual Strike Lifetime Bright Nickel Finish - 141 Finish Replaced by 055 *
