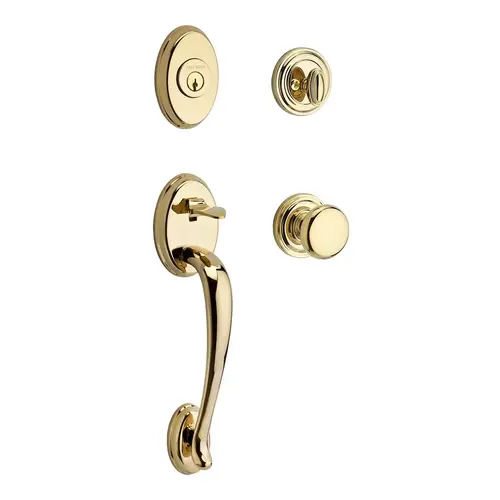

Baldwin SC-COL-ROU-TRR-003 Columbus Handleset with Round Knob Bright Polished Brass
Item #: SC-COL-ROU-TRR-003 by Baldwin
UPC #: 884011483485
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Projection
2.8889
Finish
Bright Polished Brass
Grade
ANSI/BHMA Grade 2
Backset
2-3/8 Inch or 2-3/4 Inch Adjustable, Square Corner
Keyway
Schlage C
Function
SC-Single Cylinder
Door Thickness
1-3/4" to 2"
Mount
Sectional
Handle Style
COL-Columbus
Knob Diameter
2.1875
Strike
SS-Square Corner
Bore Size
2.1250
Cylinder Type
Conventional Cylinder
Finish Description
Bright Polished Brass
Product Height
12" (Lower half); 3-15/16" (Deadbolt)
Knob style
ROU-Round
Keyblank Grouping
BALD-SCHL-C-5-1
Rose/Escutcheon Trim
TRR-Traditional Round Rose
Keying Charges
Residential-Conventional
Product Material
Solid Forged Brass
Product Type
Handleset
Series
Baldwin Reserve
Box Length
22.1300
Box Width
6.3800
Box Height
3.2500
Manufacturer Parent
Spectrum
Sub-Series
RL_Handlesets_baldwin_141
ADA Compliant
No
Door Cross Bore
2.125 Inch
Application
Residential
Box Dimensions (L x W x H)
3.25"x6.38"x22.13"
Function Family
Single Cylinder Handleset
Standards
ANSI/BHMA
Features
6 Way Adjustable (6L) Front & Latch; Deadbolt Features 1" Throw Brass Bolt Latch; Grip Offers 1/2" Passage/Privacy Function Bolt; Knob/Lever Rotate At 55°- 60°
Color Code
003
Product Length
2-11/16 Inches
Warranty
Lifetime Limited Mechanical/Finish
Finish Family
Polished Brass
Product Overview
- Columbus Handleset, with Round Knob
- Solid forged brass construction
- Shown in Single Cylinder function. Other functions available
- Shown with Round Knob and Traditional Round Rose, can be customized with other interior Reserve style knob, lever or rose
- To personalize your look, this Traditional inspired design is available in 7 finishes
- Solid brass deadbolt latch with hardened steel roll pin for additional strength and security
- Accommodates door thickness 1-3/4" to 2". Up to 2-1/2" thick door with service part kit (8BR0701-xxx)
- Baldwin 5-pin C-Keyway standard. SmartKey Re-Key Technology optional
- Adjustable backset latch fits 2-3/8" (60mm) or 2-3/4" (70mm) pre-bored doors
- Handing only required when ordering lever interior style
- Functions available: single cylinder, double cylinder and full dummy
- Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty
