La Jolla Handleset with Square Lever Polished Chrome

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

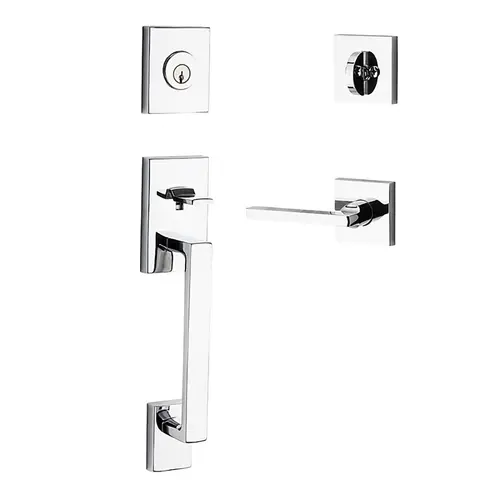

Baldwin SC-LAJ-SQU-R-CSR-260 La Jolla Handleset with Square Lever Polished Chrome

Item #: SC-LAJ-SQU-R-CSR-260 by Baldwin

UPC #: 884011835277

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$218.75

/each
SAVE UP TO 21.88

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 4 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Lever Style

SQU-Square

Keyblank Grouping

BALD-SCHL-C-5-1

Rose/Escutcheon Trim

CSR-Contemporary Square Rose

Keying Charges

Residential-Conventional

Product Material

Forged Brass

Product Type

Handleset

Series

Baldwin Reserve

Box Length

22.1300

Box Width

6.3800

Box Height

3.2500

Product Length

2-11/16 Inches

Product Height

12-15/32" (Lower Half); 3-11/32" (Deadbolt)

Finish Description

Bright Polished Chrome

Cylinder Type

Conventional Cylinder

Bore Size

2.1250

Strike

SS-Square Corner

Handle Style

LAJ-La Jolla

Mount

Sectional

Door Thickness

1-3/4" to 2"

Function

SC-Single Cylinder

Keyway

Schlage C

Backset

2-3/8 Inch or 2-3/4 Inch Adjustable, Square Corner

Grade

ANSI/BHMA Grade 2

Finish

Polished Chrome

Projection

2.4063

Handing

RH

Warranty

Lifetime Limited Mechanical/Finish

Color Code

260

ADA Compliant

No

Finish Family

Polished Chrome

Application

Residential

Hand

Right Hand

Door Cross Bore

2.125 Inch

Standards

ANSI/BHMA

Function Family

Single Cylinder Handleset

Features

6 Way Adjustable (6L) Front & Latch; Deadbolt Features 1" Throw Brass Bolt Latch; Grip Offers 1/2" Passage/Privacy Function Bolt; Knob/Lever Rotate At 55°- 60°; 5-1/2" Center to Center Tubular Bore

Manufacturer Parent

Spectrum

Box Dimensions (L x W x H)

3.25"x6.38"x22.13"

Sub-Series

RL_Handlesets_baldwin_159

Product Overview
  • La Jolla Handleset, with Square Lever
  • Solid forged brass construction
  • Shown in Single Cylinder function. Other functions available
  • Shown with Square Lever and Contemporary Square Rose, can be customized with other interior Reserve style knob, lever or rose
  • To personalize your look, this Contemporary inspired design is available in 5 finishes
  • Solid brass deadbolt latch with hardened steel roll pin for additional strength and security
  • Accommodates door thickness 1-3/4" to 2". Up to 2-1/2" thick door with service part kit (8BR0701-xxx)
  • Baldwin 5-pin C-Keyway standard. SmartKey Re-Key Technology optional
  • Adjustable backset latch fits 2-3/8" (60mm) or 2-3/4" (70mm) pre-bored doors
  • Handing only required when ordering lever interior style
  • Functions available: single cylinder, double cylinder and full dummy
  • Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty
