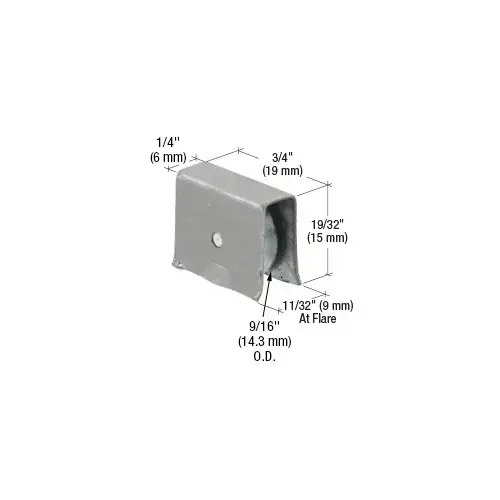

CRL D5649 Ball Bearing Wheel Assembly For Narrow H Bars, Steel Material, 3/4" Housing Length, 1/4" Housing Width
Item #: D5649 by CR Laurence
Brand: CRL
77 reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed from steel with a stamped steel housing and steel roller for consistent operation in glass door systems.
- Features a housing length of 3/4", housing width of 1/4", and housing height of 19/32" for precise fitment.
- Designed for compatibility with D5610 Series 'H' Bars and various competitive 'H' Bar profiles.
- Utilizes a ball bearing concave roller mechanism to support glass panels up to 15 square feet.
- Suitable for 1/4" thick glass panels in service windows, display shelving, and hospitality glass door applications.
- Features a wheel diameter of 9/16" and a wheel width of 3/16" to ensure smooth sliding performance.
- Designed for a press-fit installation into narrow 'H' bars, simplifying the assembly of sliding glass door panels.
Housing Width
1/4" (6 mm)
Wheel Width
3/16" (4.8 mm)
Wheel Diameter
9/16 in (14 mm)
Housing Height
19/32" (15 mm)
Housing Length
3/4" (19 mm)
Type
Ball Bearing Wheel
Height
19/32
Material
Steel
Length
3/4
Width
1/4
Product Overview
The Ball Bearing Wheel Assembly for Narrow 'H' Bars is designed for use in sliding glass door systems. This assembly features a steel housing and a steel roller, providing a functional component for service windows and display shelving. It is engineered to press-fit into D5610 Series 'H' Bars and is compatible with various competitive 'H' Bar profiles. The assembly is suitable for panels up to 15 square feet when using 1/4" material. Technical specifications include a housing width of 1/4", a wheel width of 3/16", a wheel diameter of 9/16", a housing height of 19/32", and a housing length of 3/4". This ball bearing wheel assembly facilitates smooth movement for glass panels in hospitality and display applications. The steel construction of the housing and the roller provides a stable base for the sliding mechanism. The concave shape of the roller is specifically designed to track along the guide rails of the 'H' bar system. This assembly is intended for use in environments where sliding glass panels are required for access or display, such as service windows in hospitality settings or retail display cases. The press-fit installation method allows for direct integration into the bar profile without the need for additional fasteners. This component is a standard replacement or original equipment part for compatible 'H' bar systems.
