Features
Voltage
12 Volts DC
Dimensions
6 1/4" Diameter x 9.0" Height x 6 1/4" Length
Type
Alternators
Warranty
One Year
Outputs
1 Output
Features
Ignition Safe Design
Mount Type
Dual Foot 4" Inner Diameter Saddle
ISO Approved
Ignition-Safe Design for Marine Gas or Diesel Engines , Meets USCG Title 33 , ISO 8838 and SAE J1181 Safety Standards
Pulley Groove Type
Dual Groove
Rated Output Power - 2000 RPM Hot
37 Amps
Rated Output Power - 6000 RPM Hot
156 Amps
Product Overview

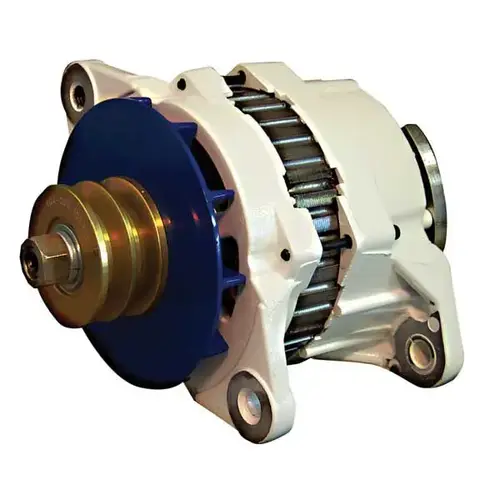

Large frame Balmar alternators deliver the power to handle larger battery banks and greater demands typical of offshore power and sailing yachts. Used in conjunction with Balmar Multi-Stage Regulators, these extra-high output alternators are designed to supply the sustained charging output required to meet big house and inverter loads while supporting extraordinary battery demands. All large frame alternators include an isolated ground. 95-Series alternators feature stout J-180 saddle mounts typical of most larger marine diesel engines. Dual V" or serpentine belts are required. 95-Series Alternator Data Sheet Balmar Alternator Application Guide
