Features
Voltage
12 Volts DC
Dimensions
5.4" x 7.5" x 7.1"
Type
Alternator
Warranty
Two years
Outputs
1 Output
Mount Type
Dual Foot 3.15"
ISO Approved
J1171 , ISO28846 , USCG Title 33
Pulley Groove Type
J10 Multigroove
Pulley Outside Diameter
2.4 Inches
Rated Output Power - 2000 RPM Hot
118 Amps
Rated Output Power - 6000 RPM Hot
170 Amps
Product Overview

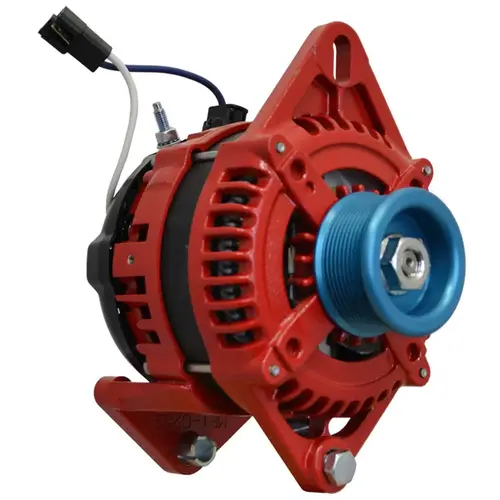

The BALMAR XT-Series Alternators provide exceptional power at low RPM and ruggedized construction for marine use. The Dual Foot 3.15" mount is appropriate for Yanmar engines. The XT-Series replaces the AT-Series with better power and temperature performace at a lower price point. J10 Multigroove pulley is appropriate for use with an AltMount Pulley Conversion Kit.
