Features
Voltage
12 Volts DC
Dimensions
5.4" x 7.5" x 7.3"
Type
Alternator
Warranty
Two years
Outputs
1 Output
Mount Type
Single Foot 1-2"
ISO Approved
J1171 , ISO28846 , USCG Title 33
Pulley Groove Type
Dual Vee
Pulley Outside Diameter
2.7 Inches
Rated Output Power - 2000 RPM Hot
118 Amps
Rated Output Power - 6000 RPM Hot
170 Amps
Product Overview

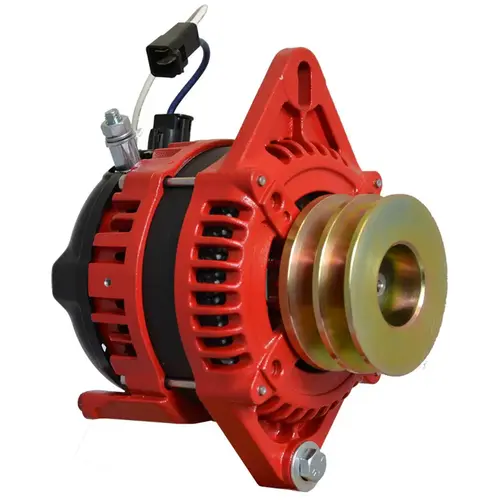

The BALMAR XT-Series Alternators provide exceptional power at low RPM and ruggedized construction for marine use. The Single Foot 1-2" mount is appropriate for most Volvo engines. The XT-Series replaces the AT-Series with better power and temperature performace at a lower price point.
