Features
Voltage
12 Volts DC
Dimensions
5.4" x 7.5" x 7.3"
Type
Alternator
Warranty
Two years
Amperage
170 Amps
Outputs
1 Output
Mount Type
Single Foot 1-2"
ISO Approved
J1171, ISO28846, USCG Title 33
Pulley Groove Type
K6 Multigroove
Pulley Outside Diameter
2.45 Inches
Rated Output Power - 2000 RPM Hot
118 Amps
Rated Output Power - 6000 RPM Hot
170 Amps
Standard Pulley
(2.4" dia)
Product Overview

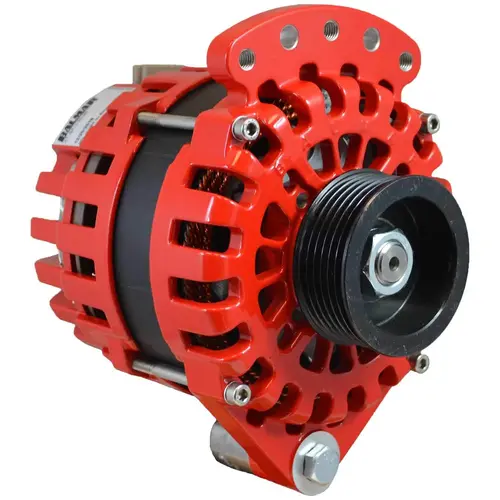

BALMAR XT-Series, 170 Amp, 12 Volt, K6 Pulley Alternator Great high output drop in replacement for many ski/wake boat applications. Balmar XT-Series Alternators provide exceptional power at low RPM and ruggedized construction for marine use. The Single Foot 1-2" Mount is appropriate for many GM-block gas engines. K6 Multigroove pulley. Features:
