Features
Voltage
24 Volts DC
Type
Alternator
Warranty
Two years
Outputs
One Output
Mount Type
Single Foot 1-2"
ISO Approved
J1171 Approved
Pulley Groove Type
K6 Multigroove
Pulley Outside Diameter
2.45 Inches
Rated Output Power - 2000 RPM Hot
46 Amps
Rated Output Power - 6000 RPM Hot
85 Amps
Product Overview

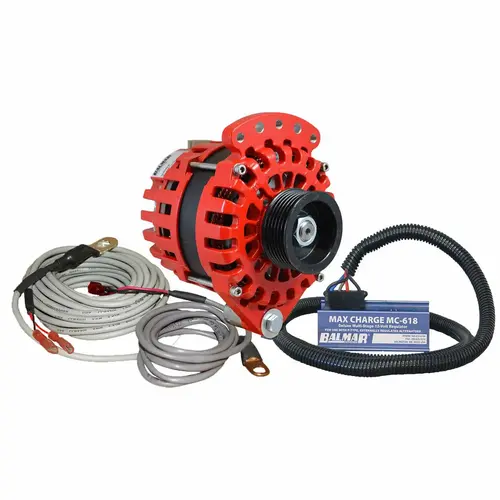

BALMAR XT-Series Alternator XT-Series Alternators from Balmar bring together the latest innovations in alternator design to deliver incredible charging power in a compact, Marine & RV-friendly package. The New XT-Series Alternator family features a state-of-the-art, braided wire stator design to generate exceptional output in the smallest possible area. The XT-Series produces more power than previous AT-Series designs and operates 5o -10o C cooler. In addition, Balmar also added Smart Ready internal regulator technology to provide an additional level of fault tolerance for cruising boaters. Available XT-Series mounting styles have been expanded to include the Vortec" 9Si design found on many GM gasoline engines. XT-Series Alternators feature 96 slots - compared to 36 slots in a traditional S-wound stator allowing the stator to develop superior electromagnetic energy and efficiency compared to traditional stator designs. The XT-170 and XT-250 are designed to deliver superior performance at idle speeds - up to 128A and 186A, respectively for 12V applications. XT-Series Alternators may require a Tachometer Signal Stabilizer (Part No. 15-TSS) if your current tach is not adjustable. XT-Series Alternators should only be used in Dual Vee or Multi-Groove Serpentine belt configurations. Balmar s range of AltMount Serpentine Pulley Conversion Kits support XT-Series Alternators. Features:
