30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Hinges are manufactured in accordance with ANSI/BHMA A156.1. Self-closing hinges and pivots are in accordance with ANSI/BHMA A156.17 using three hinges per opening on a 3’0” x 7’0” x 1-3/4” (914 mm x 2134 mm x 44 mm) door.
- Round corners are available in 1/4” (6 mm) (standard) or 5/8” (16 mm) radius.
- Full Mortise Both leaves are mortised, one leaf in the door and one leaf in the frame (wood door or hollow metal door with wood frame or hollow metal frame). Example: BB1279, 4-1/2” x 4-1/2” (114 mm x 114 mm), US26D
- Half Mortise One leaf is mortised in the door and the other is surface applied to the frame (hollow metal door with channel iron frame). Example: BB1109, 4-1/2” (114 mm), US26D
- Full Surface Both leaves are applied to the surface, one to the door and the other to the frame (metal core door or hollow metal door with channel iron frame). Example: BB2171, 5” (127 mm), USP
- Half Surface One leaf is mortised in the frame and the other is surface applied to the face of the door (wood door with wood frame or metal core door with hollow metal frame) Example: BB1163, 5” (152 mm), US26D
Pin Type
Non-Rising Removable
Weight
Standard Weight
Knuckles
5
Height
5 In.
Color
Satin Stainless Steel
Width
5 In.
Fire Rated
3 Hours {A}
Special Marks
Fire rated 3 Hours {A}
Bearing Type
Ball
Package Qty
1
Hinge Type
Full Mortise
Color Code
630/US32D
Mounting Style
Square
Base Material
Stainless Steel
Finish
Satin Stainless Steel
Finish Description
Satin Stainless Steel
Product Type
Hinge/Pivot
Series
BB1191 Series
Hinge Size
5 x 5 Inch
Material
Brass with Stainless Steel Pin, Stainless Steel with Stainless Steel Pin
Certifications
ANSI A2112 (Brass)ANSI A5112 (Stainless Steel)
Fastenersize-Wood
#9 x 1"
Fastener Size
1/2" x 12-24 Machine; 1-1/4" x 12 Wood
Number of Mounting Holes
8 Foot (96 Inches)
Manufacturer Parent
Hager Companies
Recommended For
Medium Weight Doors or Doors Requiring Medium Frequency Service
Function
Ball Bearing Hinge
Distance From Leaf Edge To Swag Line
1-7/8"
Sub-Series
HP_Commercial_Hinges_hager_41
ADA Compliant
No
Box Dimensions (L x W x H)
6.5x8.5x11.56
Function Family
Hinge/Pivot
Mount
Full Mortise
Standards
ANSI A5112
Hinge Corner
Square Corner
Number of Knuckles
5
Features
Non-Rising Removable Pin with Button Tip and Plug; Two Ball Bearings
Product Material
Stainless steel
Knuckle diameter
39/64"
Hinge Weight
Standard
Warranty
Lifetime limited
Included Components
Fasteners/Screws
Finish Family
Stainless Steel
HINGE ELECTRIFICATION - COMMERCIAL
NOT APPLICABLE
HINGE WIDTH in. - COMMERCIAL
5
HINGE MISC.
NOT APPLICABLE
HINGE HEIGHT in. - COMMERCIAL
5
HINGE FINISHES - COMMERCIAL
5
HINGE TYPE - COMMERCIAL
BALL BEARING
HINGE PACKING AND FASTENERS
STANDARD
HINGE LEAF
STANDARD
HINGE TIPS
STANDARD
Product Overview

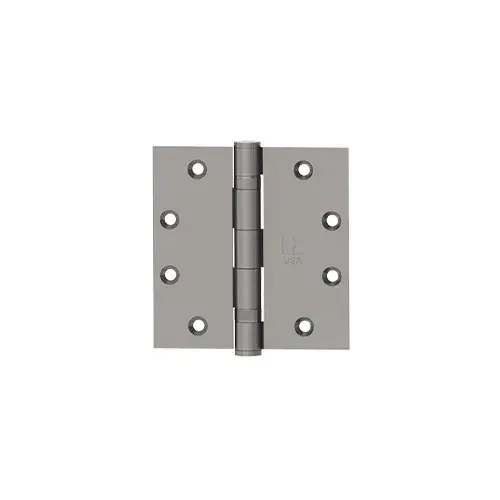

Full Mortise, Ball Bearing, Standard Weight
Applications:
For use on medium weight doors or doors requiring medium frequency service
Certifications:
Features:
Non-rising removable pin with button tip and plug. Two ball bearings.
Finishes:
Options:
Applications:
For use on medium weight doors or doors requiring medium frequency service
Certifications:
- ANSI A2112 (Brass)
- ANSI A5112 (Stainless Steel)
Features:
Non-rising removable pin with button tip and plug. Two ball bearings.
Finishes:
- L1, US3, US10, US10B, US15, US26, US26D, US32, US32D
- Additional finishes may be available, please contact Hager for availability and lead time.
Options:
- NRP (Non-removable pin)
- Stamped with UL logo when ordered for export
