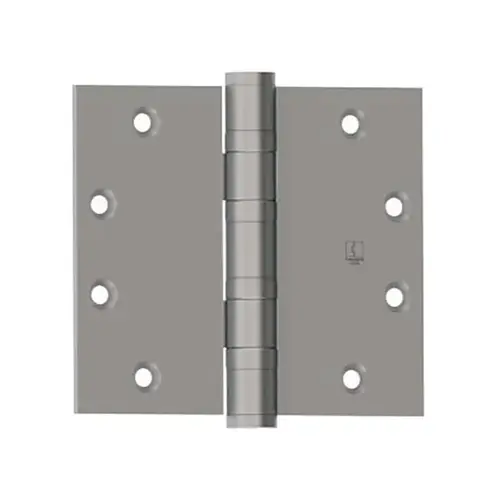

Hager BB1199N 4-1/2X4-1/2 US32 4 1/2" x 4 1/2" Full Mortise Ball Bearing Hinge, Heavy Weight, 4-1/2" x 4-1/2", Stainless Steel, 5 Knuckle, Bright Stainless Steel
Item #: BB1199N 4-1/2X4-1/2 US32 by Hager
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Hinges are manufactured in accordance with ANSI/BHMA A156.1. Self-closing hinges and pivots are in accordance with ANSI/BHMA A156.17 using three hinges per opening on a 3’0” x 7’0” x 1-3/4” (914 mm x 2134 mm x 44 mm) door.
- Round corners are available in 1/4” (6 mm) (standard) or 5/8” (16 mm) radius.
- Full Mortise Both leaves are mortised, one leaf in the door and one leaf in the frame (wood door or hollow metal door with wood frame or hollow metal frame). Example: BB1279, 4-1/2” x 4-1/2” (114 mm x 114 mm), US26D
- Half Mortise One leaf is mortised in the door and the other is surface applied to the frame (hollow metal door with channel iron frame). Example: BB1109, 4-1/2” (114 mm), US26D
- Full Surface Both leaves are applied to the surface, one to the door and the other to the frame (metal core door or hollow metal door with channel iron frame). Example: BB2171, 5” (127 mm), USP
- Half Surface One leaf is mortised in the frame and the other is surface applied to the face of the door (wood door with wood frame or metal core door with hollow metal frame) Example: BB1163, 5” (152 mm), US26D
Pin Type
(NRP) Non Removable
Weight
Heavy Weight
Knuckles
5
Height
4-1/2 In.
Color
Bright Stainless Steel
Width
4-1/2 In.
Fire Rated
3 Hours {A}
Special Marks
Fire rated 3 Hours {A}
Bearing Type
Ball Bearing
Package Qty
1
Hinge Type
Hinge, Full Mortise
Color Code
629/US32
Mounting Style
Square
Base Material
Stainless Steel
Full Mortise Ball Bearing Hinge, Heavy Weight, 4-1/2" x 4-1/2", Stainless Steel, 5 Knuckle, Bright Stainless Steel
Ball bearing heavy weight brass base hinge for use on hollow metal or wood composite doors with hollow metal frames requiring high frequency service
There are three dimensions to know in order to determine the minimum width of the hinge: door thickness, backset, and clearance required.
Today, the Hager name is synonymous with architectural hinges. In fact, they are the industry's premiere designer and manufacturer of architectural hinges, with a product line that offers one of the widest varieties of sizes, shapes, and finishes--all of which meet or exceed ANSI standards.
