30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Hinges are manufactured in accordance with ANSI/BHMA A156.1. Self-closing hinges and pivots are in accordance with ANSI/BHMA A156.17 using three hinges per opening on a 3’0” x 7’0” x 1-3/4” (914 mm x 2134 mm x 44 mm) door.
- Round corners are available in 1/4” (6 mm) (standard) or 5/8” (16 mm) radius.
- Full Mortise Both leaves are mortised, one leaf in the door and one leaf in the frame (wood door or hollow metal door with wood frame or hollow metal frame). Example: BB1279, 4-1/2” x 4-1/2” (114 mm x 114 mm), US26D
- Half Mortise One leaf is mortised in the door and the other is surface applied to the frame (hollow metal door with channel iron frame). Example: BB1109, 4-1/2” (114 mm), US26D
- Full Surface Both leaves are applied to the surface, one to the door and the other to the frame (metal core door or hollow metal door with channel iron frame). Example: BB2171, 5” (127 mm), USP
- Half Surface One leaf is mortised in the frame and the other is surface applied to the face of the door (wood door with wood frame or metal core door with hollow metal frame) Example: BB1163, 5” (152 mm), US26D
Height
5 In.
Pin Type
Removable
Weight
Heavy Weight
Color
Satin Stainless Steel
Color Code
630/US32D
Mounting Style
Square

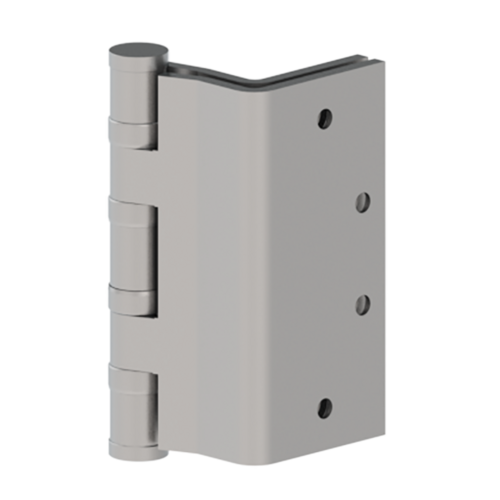

Hinge Type
Hinge, Swing Clear
Fire Rated
3 Hours {A}
Bearing Type
Ball Bearing
Knuckles
5
Package Qty
1
Special Marks
Fire rated 3 Hours {A}
Base Material
Stainless Steel
Material
Stainless Steel with Stainless Steel Pin
Fastenersize-Wood
1 1/4" x 12" FH
