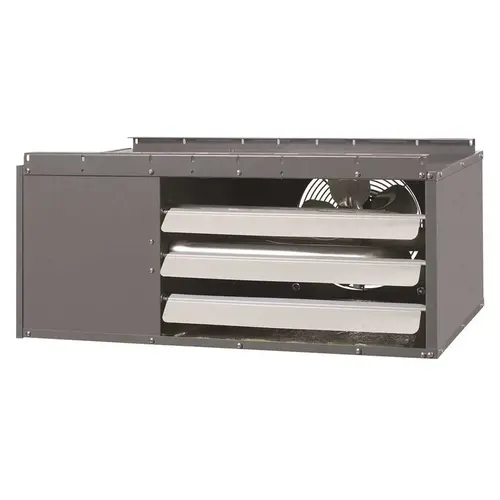

Beacon Morris BRT045N BRT SERIES UNIT HEATER 45K DIRECT SPARK IGNITION
Item #: BRT045N by Beacon Morris
UPC #: 700201002857
Item Discontinued!30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Fuel Type
Natural gas
Wattage
13200 Watt Input, 10900 Watt Output
Height
13.25 in.
Color
Gray
HVAC Product Type
Heating
General Material
Steel
Product Width (in.)
30
Width
28.625 in.
Phase
1
Heat rating (BTU/hour)
37350
Ignition Type
Continuous Spark
Depth
25.87 in.
Certifications and Listings
ETL Listed
Flue Diameter
4 in.
Product Height (in.)
13.25
Material
Stainless Steel
Pack Size
1
Heater Type
Vented
Indoor/Outdoor
Indoor
Product Depth (in.)
26
Warranty
10 YEARS ON HEAT EXCHANGER, 1 YEAR ON PARTS
General Color Family
Grays
Manufacturer Warranty
10 YEARS ON HEAT EXCHANGER, 1 YEAR ON PARTS
Heating BTU
45000 BTU Input, 37350 BTU Output
Certifications
ETL
UNSPSC
40101819
The Beacon/Morris Model BRT Low Profile gas-fired unit heater is a highly efficient, extremely versatile product. These propeller units combine the latest tubular heat exchanger technology with a unique single-orifice burner system.
- 30,000 - 120,000 BTU for residential use
- 82 - 83% efficient
- Aluminized steel heat exchanger
- Direct ignition with 100% lockout
- Single stage combination gas valve
- Factory set for Natural Gas
- Propane conversion kit sold separately, usn#485129
- 115/1/60 supply voltage
- 115 volt fan motor with internal overload protection
- High temperature limit control
- Pressure switch to verify vent flow
- Flame rollout safety switch
- Factory installed power venter
- 24 volt control voltage transformer
- Individually adjustable horizontal louvers
- 2 and 4 point suspension
- A.G.A. ratings for altitudes to 2,000ft. Above 2000 ft, de-rate by orifice change, 4% for each 1,000 ft above sea level. C.G.A. ratings for altitudes units (2,000-4,500 ft) are de-rated by 10% of maximum input
- Gas connection for propane is 1/2" for all sizes. Sizes shown are for gas connection to a single stage valve: NOT gas supply line size
- Field convertible to separated combustion
