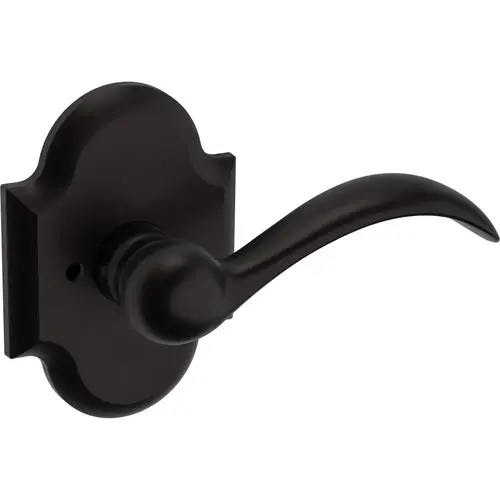

Baldwin 5452V102PRIV 5452V.102.PRIV Beavertail Privacy with R030 Rose / 2-3/8" Latch - Oil-Rubbed Bronze
Item #: 5452V102PRIV by Baldwin
UPC #: 884011402127
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 5452V Lever Privacy Set
- Solid Forged Brass
- Preconfigured With R030 Rose
- Upon Request, Lock Can Be Certified By Underwriters Laboratories (Ul) For Use On Fire Doors Up To Three-Hour Rating
- Limited Lifetime Mechanical Warranty and No Finish Warranty
Material
Brass
Product Class
Residential
Theme
Traditional
Function
Privacy/Bed/Bath
Handing
Left, Reversible, Right
Latch Faceplate
Square Corner
Style
Transitional
Shape
Wave
Rose Diameter
2.625
Backset
2-3/8 Inch
Door Thickness
1-3/8" to 1-3/4"
28 Degree Latch
Yes
ADA
Yes
Concealed Screws
Yes
Cross Bore
2-1/8"
Edge Bore
1"
Locking Mechanism
Trim Lock
Rosette Shape
Arch
Solid Construction
Solid Brass
Collection
Beavertail
Projection
2.2790
Lever Length
4.119
Series
5400 Series
Strike
T-Strike, 1-1/8 Inch x 2-3/4 Inch, 1-1/4 Inch Lip, Sq Corner
Finish Description
Oil Rubbed Bronze
Lever Style
5452V-Beavertail
Rose/Escutcheon Trim
R030-Arch Rose
Product Type
Cylindrical Lock
Finish
Oil-Rubbed Bronze
Grade
ANSI/BHMA Grade 2
Product Height
3-15/16 Inches
Included Components
(1) Pre-Configured Privacy Lever Set
Product Material
Brass
Warranty
Lifetime limited mechanical and finish
Color Code
102 Inch (8 Foot 6 Inch)
ANSI Function
F76
Latch Type
28-Degree Solid Brass
Strike Type
Full Lip
ADA Compliant
YES
Finish Family
Dark Bronze
Strike Size
1-1/8 x 2-3/4 Inch
Door Cross Bore
2.125 Inch
Standards
UL Listed
Faceplate Dimension
1" x 2-1/4"
Function Description
Outside knob/lever locked by pushbutton on inside knob/lever. Rotating inside knob/lever or closing door releases/unlocks button. Emergency release in outside knob/lever.
Function Family
Privacy/Bedroom/Bathroom
Product Projection
2-1/4 Inch
Features
Concealed Fasteners
Manufacturer Parent
Spectrum
Lever Length-Inches
4.125 Inch
Box Dimensions (L x W x H)
5.9 x 5.3 x 4.6
Sub-Series
RL_Lever_Locksets_Baldwin_107
Package Height
3.5"
Package Length
11.25"
Package Width
6"
Item Weight
4.2 lbs
Dimension
4-3/25" Lever Length, 2-7/25" Projection
Manufacturer Warranty
Limited Lifetime Mechanical Warranty and No Finish Warranty
Rose/Escutcheon Design
R030 Rose
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
1-5/8" x 2-1/4"
Cross Bore Size
2-1/8" Bore
Finish code
102
Design
Beavertail Lever
Latch Faceplate Dimension
1" x 2-1/4"
Lever Knob Design
5452V Lever
No of inners
1
Product Overview
5452V.102.PRIV Beavertail Privacy with R030 Rose 2-3/8" Latch - Oil-Rubbed Bronze
