Satin Brass Bellagio Series Glass-to-Glass Bracket

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

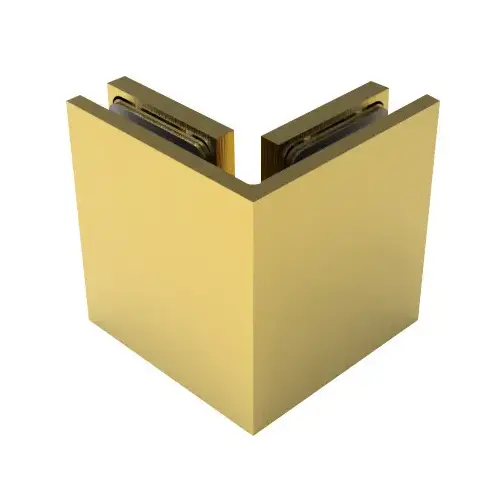

CRL BEL090SB Satin Brass Bellagio Series Glass-to-Glass Bracket

Item #: BEL090SB by CR Laurence

See reviewsSee reviews
See reviews summary

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Matching Bellagio Series Hinges Available
  • For 5/16 to 3/8 (8 to 10 mm) tempered glass
  • Tight Gaps Prevent Water Infiltration
  • Snap-on Covers Conceal Screws

Finish

Satin Brass

Mounting Type

Glass To Glass

Material

Brass

Glazing Thickness

5/16 To 3/8

Maximum Door Width

39

Finish/Color

Satin Brass

Series

Bellagio

Glazing Thickness (Millimeters)

8 to 10

Maximum Door Weight - 2 Hinges

110 Lbs.

Glass To Glass Angle

90 degrees

Height

2-15/16

Leg Length

2-3/4

Maximum Door Weight

110

Length

2-3/4 in. (70 mm)

Opening Style

Swing(side)

Enclosure Type

Corner, Niche, Bathtub, Tailor Made Solutions

Design Style

Concealed/Premium

Product Overview

CRL Bellagio Series 90 Degree Glass-to-Glass Bracket are designed to work with 5/16" to 3/8" (8 to 10 mm) thick glass. thick glass projects. The two mounting screws per panel matches the configuration of many of our most popular hinge series. Continuity of design is maintained by matching the look of the hinges used. They feature square corners and edges in several decorator finishes and are constructed of solid brass. Custom finishes are available on request by contacting DK Hardware Sales Shower Door Department.




SPECIFICATIONS
Glass Thickness: 5/16" to 3/8" (8 to 10 mm)
Material: Solid Brass
Includes: Gaskets and Mounting Screws Hole Diameter
Required: One 5/8" (16mm) Hole Per Panel

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Brass Finish Advisory: Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
