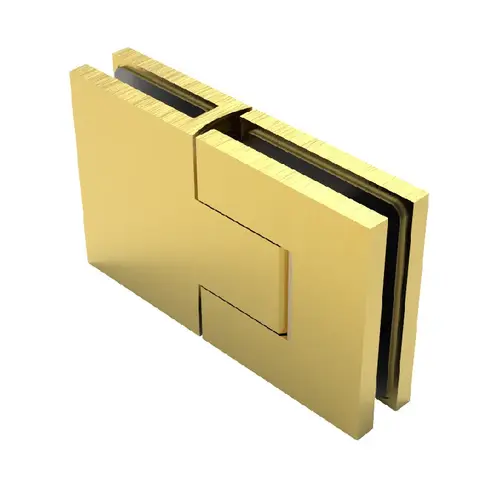

CRL BEL380SB Satin Brass Bellagio Glass-to-Glass 180 Degree Hinge
Item #: BEL380SB by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Works with 5/16” to 3/8” (8 mm to 10 mm) glass
- Matching Bellagio Series Brackets Available
- Tight Gaps Prevent Water Infiltration
- Self-centers from 25 Degrees
- Adjustable Positive Closure
- Snap-on Covers Conceal Screws
- Rigorously Tested to 100,000 Cycles - 5x More than the Industry Standard
Height
2-59/64
Finish
Satin Brass
Mounting Type
Glass To Glass
Material
Brass
Width
4-7/8
Glazing Thickness
5/16 To 3/8
Edge Profile
Square
Finish/Color
Satin Brass
Series
Bellagio
Maximum Door Width - 2 Hinges
39"
Maximum Door Weight - 2 Hinges
110 Lbs.
Glass To Glass Angle
180 degrees
Maximum Door Weight
110
Maximum Door Width
39
Opening Style
Swing(side)
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Design Style
Concealed/Premium
Product Overview
The modern Bellagio Series Hinge is unlike any other hinge. The precision lines help shape the unique design of this hinge for 5/16" to 3/8" (8 mm to 10 mm) glass. All fasteners are concealed. The hinge has an adjustable closing position that is accessed when the door is hung. The hinges are self-centering within 25 of the closed position. Using two hinges, a maximum door width of 39" (1 m) and a maximum weight of 110 lb (50 kg.) can be achieved.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory: Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
