CRL BM650 Benchmark 650 Hot Melt Butyl Extruder System

Item #: BM650 by CR Laurence

Item Discontinued!
See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

F.O.B

Rochester Hills, MI

Shipping Weight

135 lb (61.23kg)

Product Overview

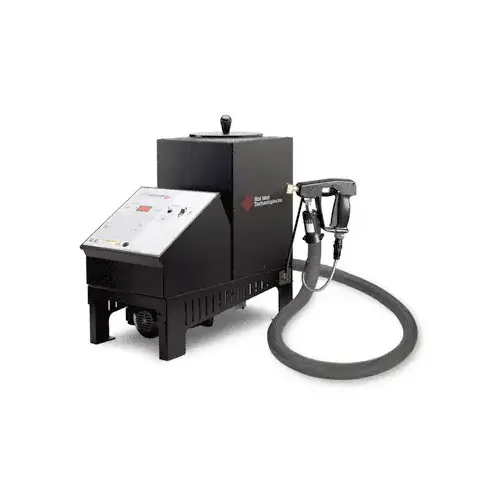

The CRL Benchmark 650 System comes complete with a 8-foot heated hose, a lightweight, trigger-activated bottom feed handgun, and a sealant nozzle adapter that accepts industry standard gunning tips and nozzles. And, like all CRL Benchmark applicators, the CRL Benchmark 650 System offers simple set-up and features easy-to-use controls with a locking front panel. For additional information or available options contact CRL Glass and Glazing Technical Sales Department at (305) 851-2811 extension 7720 for details.
Specifications:
System Type
ººº High Performance, Heavy Duty
ººº Melt Rate: Up to 35 lbs./hr.
ººº Pump Rate: Up to 120 lbs./hr.
ººº Voltage: 220v, 1ph, 50/60hz
ººº Service Amperage: 20amp
Melt Tank Capacity
ººº 5 gals. (approx. 50 lbs.)
Tank Type
ººº Extruded Aluminum
ººº Dual Pre-Melt Center Grids
ººº Modular (patented)
ººº Release Coated
Pump Type
ººº Positive Displacement
ººº Hardened-Steel Spur Gear
Motor Type
ººº AC, Fractional HP
Tank Heaters
ººº Cartridge Type
ººº Voltage: 220v
ººº Wattage: 3000w
Hose Style
ººº Length: 8 ft.
ººº Core Size: #10
ººº Voltage: 220v
Handgun Style
ººº DG-401-RS Model
ººº Voltage: 220v
