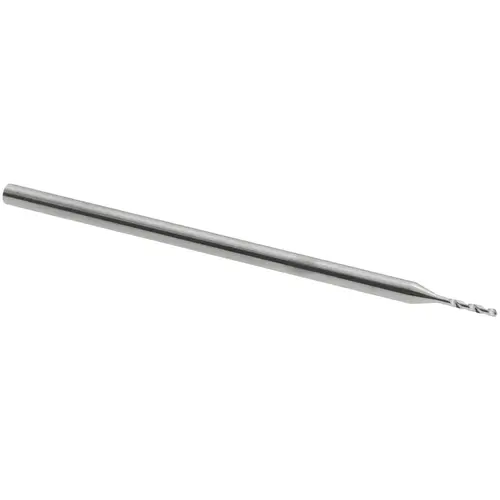

Micro Drill Bit: 0.0142" Dia, 118 deg, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Big Kaiser 40.50699.0036-XCP10 Micro Drill Bit: 0.0142" Dia, 118 deg, Solid Carbide - pack of 10

Item #: 40.50699.0036-XCP10 by Big Kaiser

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$178.85

/package
SAVE UP TO 17.88
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 6 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Secondary Workpiece Material Code

M

Web Thinning

Web-Thinned

Web Configuration

Tapered

Secondary Workpiece Material

Non-Ferrous Metal

Maximum Drilling Depth (mm)

2.40

Drill Point Angle

118

Drill Bit Diameter Tolerance

+0.000 to -0.004 mm

Vendor Drop Ship

N

UNSPSC Code

23241600

Shank Diameter (mm)

1.00

Primary Workpiece Material Code

K

Primary Workpiece Material

Cast Iron

Overall Length (Decimal Inch)

0.9840

Material Grade

K20/30

Flute Length (Decimal Inch)

0.0950

Flute By Diameter Ratio

6xD

Drill Bit Size (Decimal Inch)

0.0142

Coolant Through

No

Coating/Finish

Bright/Uncoated

Tool Application

Blind Hole

Spiral Type

Regular

Point Type

Four Facet

Series

50 699

Cutting Direction

Right Hand

Tool Material

Solid Carbide

Standards

DIN 1899A

Shank Type

Straight-Cylindrical

Flute Type

Spiral

Product Overview
Micro Drill Bit: 0.0142" Dia, 118 deg, Solid Carbide Bright/Uncoated, 0.9840" OAL, Right Hand, Series 50 699
