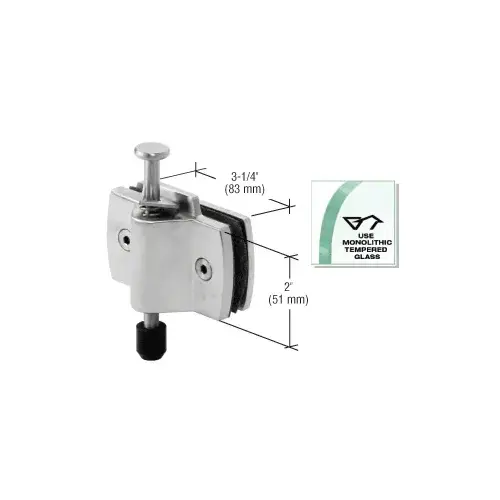

CRL B1R22 Birmingham Series Brushed Stainless Bottom Lock Patch

The CRL Birmingham Series Bottom Lock Patch mounts to the bottom corner of the lead pivot panel of the bi-fold system. The easy lock and release mechanism secures the door in the closed position. This patch is available in a brushed stainless steel finish and is non-handed. Two holes in glass panel are required.
The Birmingham Bi-Folding Top Hung Door System features corner patches to create a modern and elegant look. It can accommodate from two to twelve panels that can be bi-folded to one side or bi-part, with a maximum of six panels to a side. The systems are easy-to-install and a cost-effective solution for commercial or residential interior applications.
There are three kits available from stock: 2 x 2 Bi-Folding, a three panel Bi-Folding, and a four panel Bi-Folding. All with everything you need to complete the installation, except for the glass and the fasteners going into the substrate. However, the combinations do not stop there, you can easily add additional fittings to create the desired configuration of your choice, providing it meets system limitations.
Panels are hinged together with alloy 304 stainless steel patches and suspended from the satin anodized aluminum top track by heavy-duty rollers. Similar patches are used at the midpoint of the panels to ensure safe operation on openings taller than 104" (2.6 m).
Matching bottom patches with guide pins slide inside a floor mounted continuous channel maintaining proper alignment of the panels as they fold open and closed.
Maximum panel weight of 110 lbs. (50 kg), with a maximum width of 29" (737 mm) and maximum height of 118" (3 m). Fittings can accommodate 3/8" or 1/2" (10 or 12 mm) tempered glass and require two holes per door, per fitting, and notches for the center lock housings. The top and bottom tracks come in 118" (3 m) lengths.
Optional Slim Line Locking Handles and Receiver Handles are available.
Product Warning:
STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
